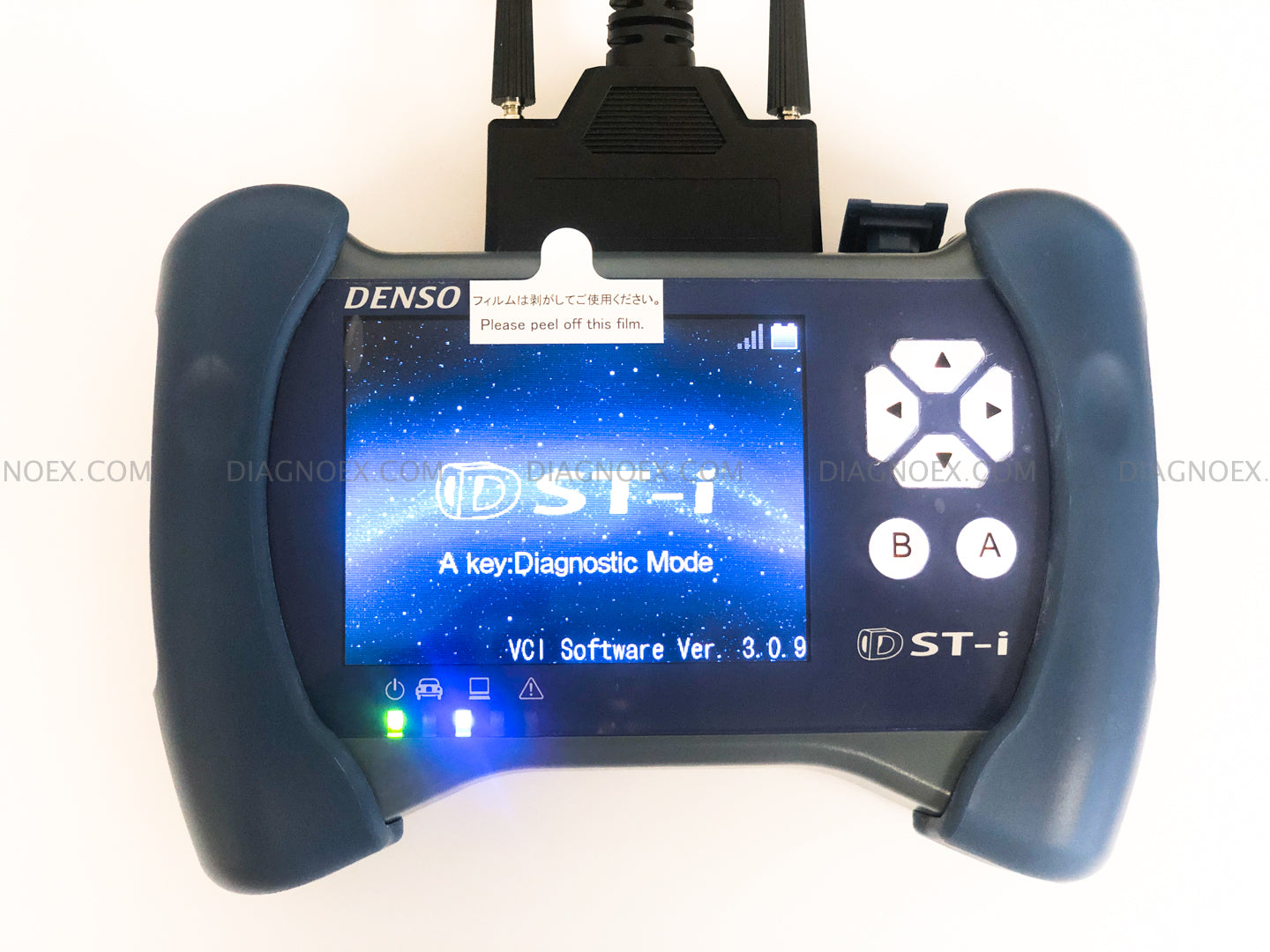

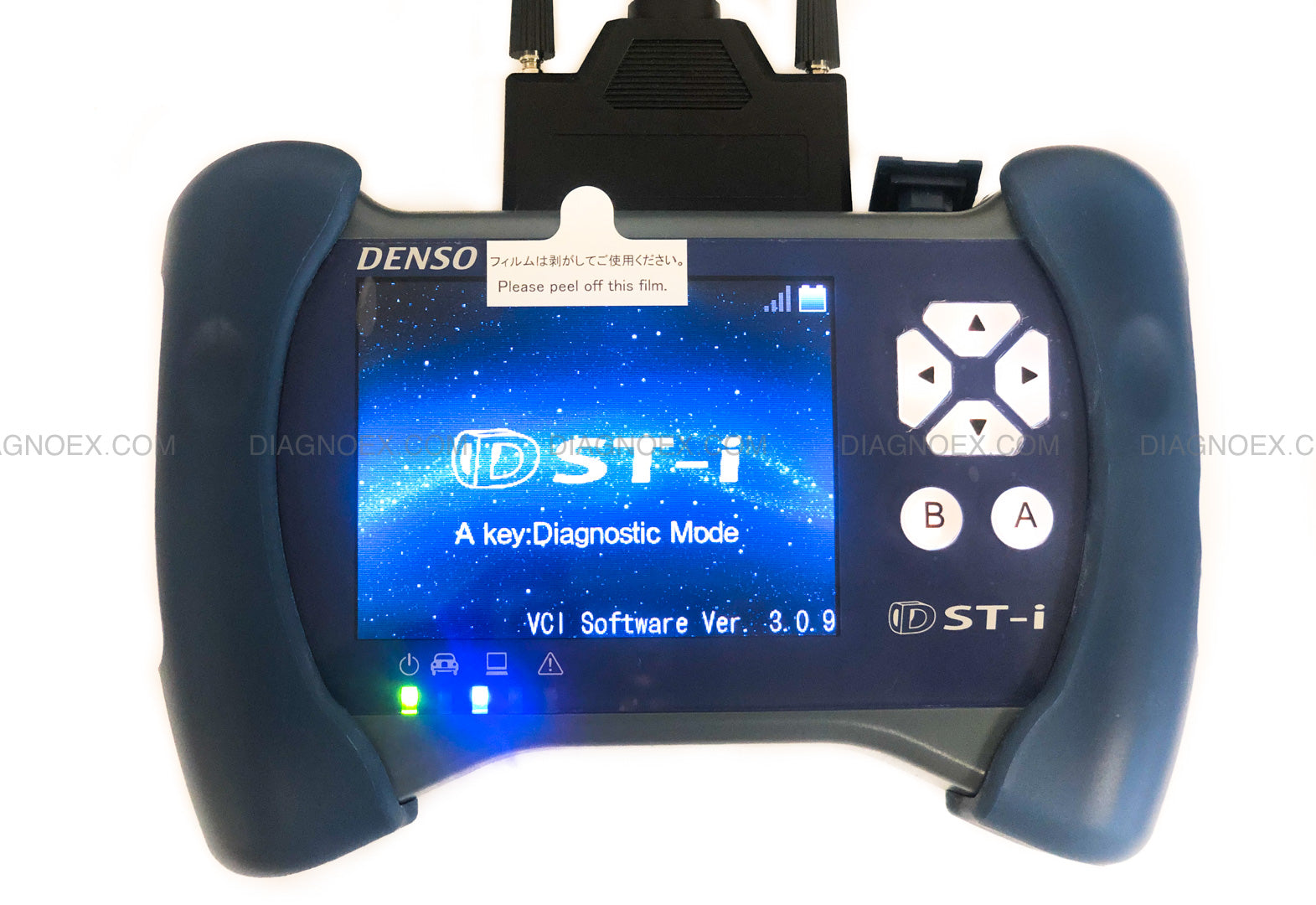

Honda DENSO DST-i Vehicle Communication Interface

Honda DST-i Vehicle Communication Interface works with Honda i-HDS Honda Diagnostic System software. The interface manufactured by Denso Japan is used in Honda, Acura dealerships as a dealer interface. The DST-I connects to a PC for use with HDS and iHDS software for diagnostic and programming Honda and Acura vehicles. It has a memory card to store flash programming files.

Manufacturer: DENSO
MADE IN JAPAN

Type: HONDA

  • Honda DST-i Overview

    Product Specifications
    CPU: 32-bit RISC microcomputer
    Dimensions: 160 mm W x 110 mm H x 45 mm D
    External Interface- DC Jack: Option port for function expansion
    External Interface- SD Memory Card: Slot x 1 (supporting SC and SDHC memory cards)
    External Interface- Vehicle Communication: ISO9141, CAN, P-Line, Diag-X, Diag-H, SCS, WEN
    External Interface- Wireless LAN: IEEE802.11b / IEEE802.11g / IEEE802.11n (24 GHz band) compliant
    Input Device - Operation Keys: 6 keys
    LCD Display Color: Max. 260000 colors
    LCD Resolution: QVGA (320 x 240 dots)
    LCD Size: 3.5" TFT color LCD
    Memory- Built in Flash ROM: 16 MB
    Memory- SDRAM: 16 MB
    Memory-EEPROM: 32 KB
    Operating Humidity: 10 to 90% (No condensation)
    Operating Temperature [Storage Temperature]: 0 to 50°C [-20 to 70°C]
    Power Consumption: Normally 1.5 W (12 VDC), Max. 2.5 W (12 VDC)
    USB Power (BUS power): DC 4.75 to 5.25 V
    Vehicle Power Supply: DC 6.8 to 32V (Datalink cable) (36 V:within one hour)
    Weight: Approx.350

  • DST-i Part Number

    3 Meter DLC Cable : DSCDLCCABL

    3 Meter USB Cable : DSCUSBCBLWSP

    USB Cable Lock : DSCUSBLOCK

    USB Cable Spacer : DSCUSBSPAC

    SD Card : DSCSDCARD

    Tool Case : DSCCASE

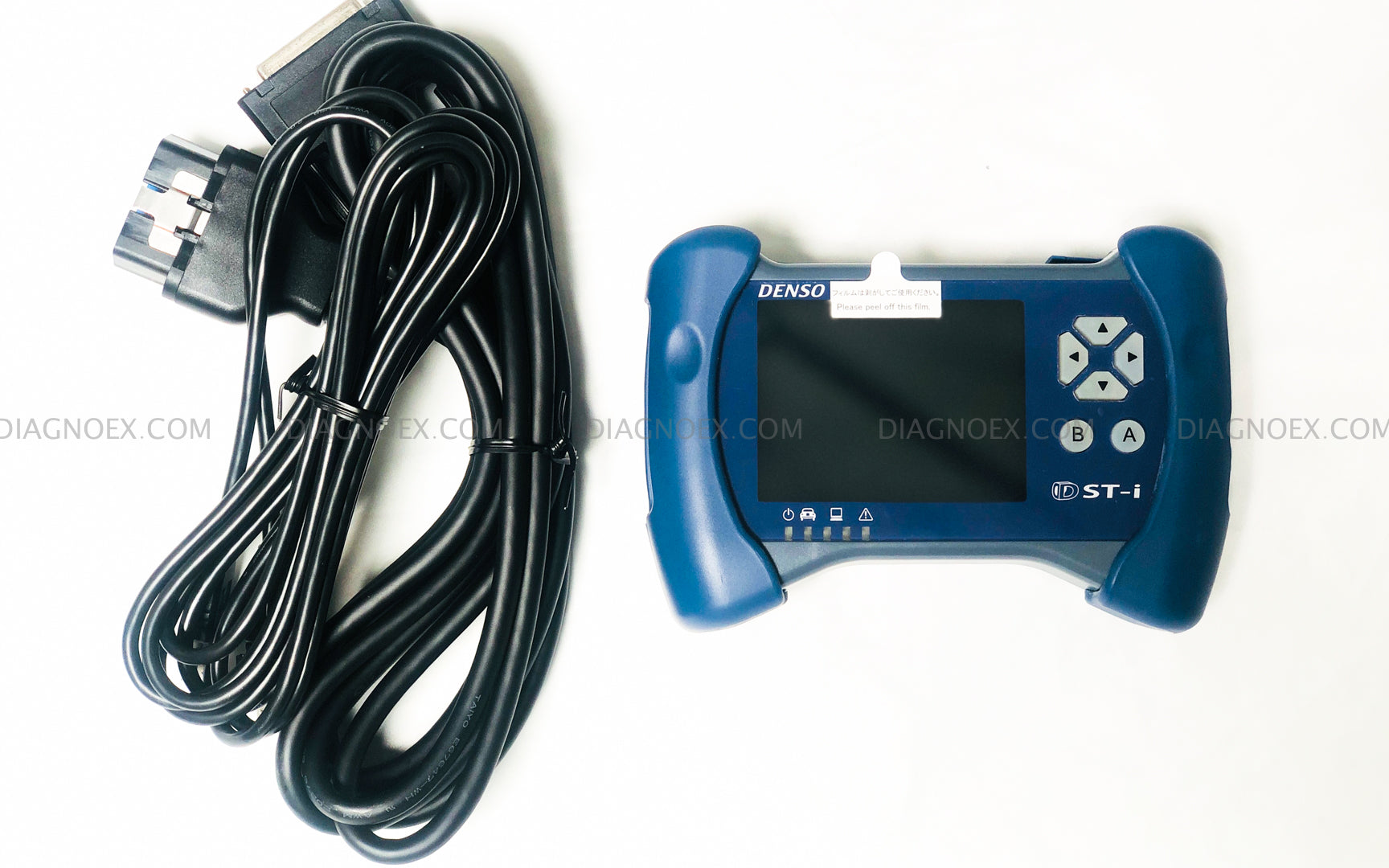

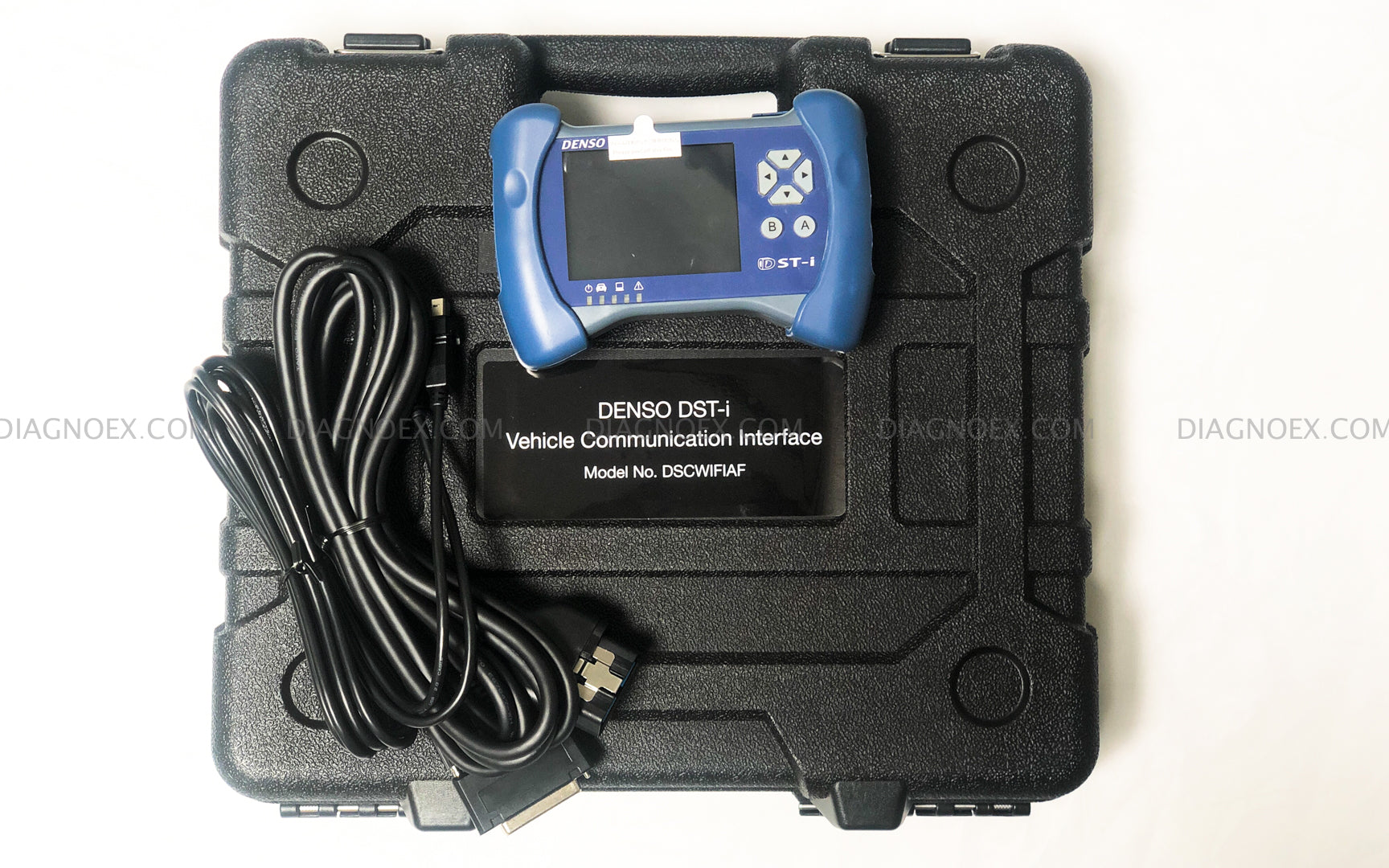

  • What's in the box

    3 Meter DLC Cable

    3 Meter USB Cable

    USB Cable Lock

    USB Cable Spacer

    SD Card

    Tool Case

    • Customer Review

      Be first to review this product
    • User Manuals & Technical Service Bulletin

    • Cables, Parts & Accessories

    • Frequently Asked Questions

      Q: Do DST-i and i-HDS support immobilizer programming?
      A: Yes, you can use your locksmith account to do immobilizer functions
