Honda i-HDS Workshop Pro Package

In Stock Free Shipping

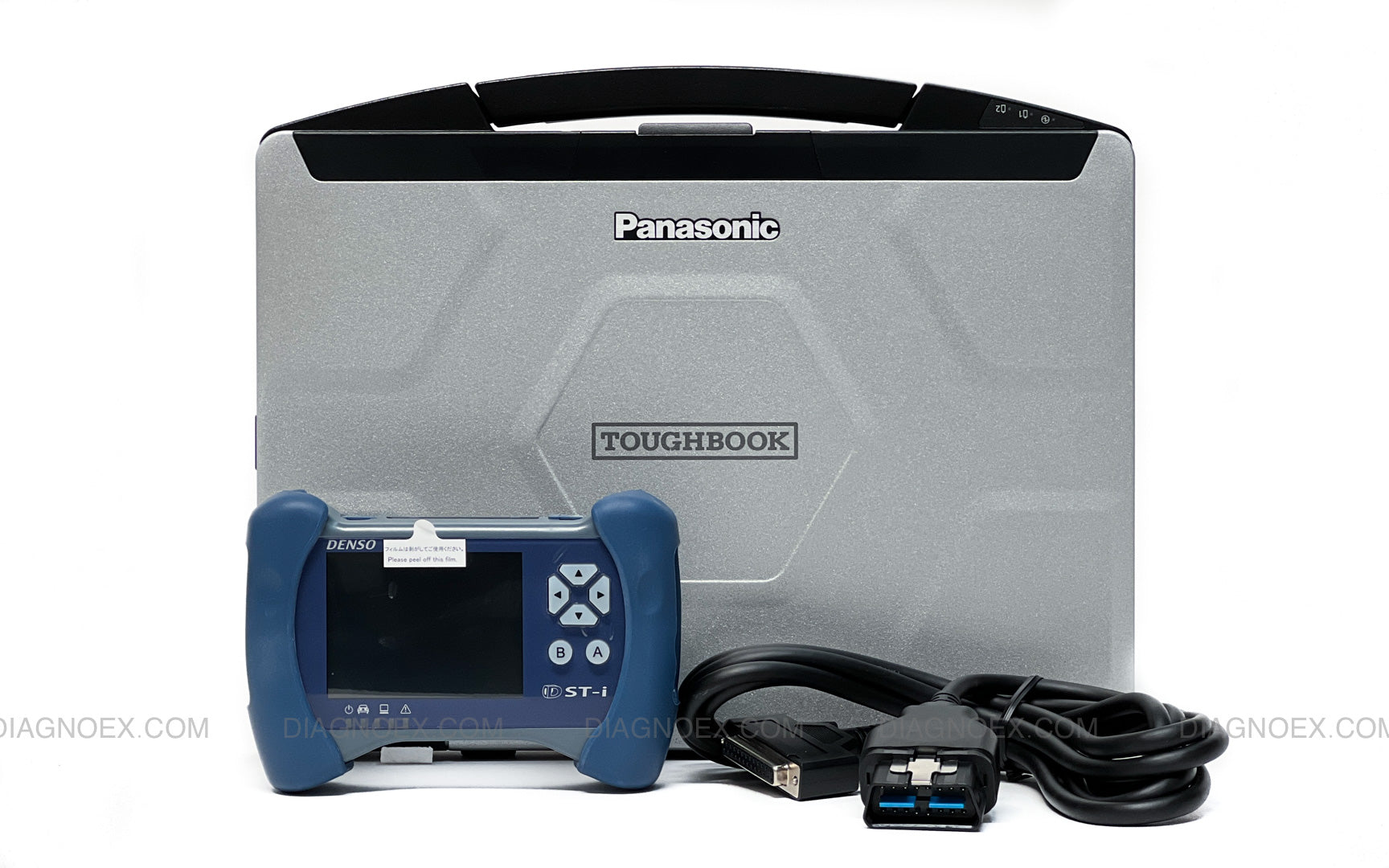

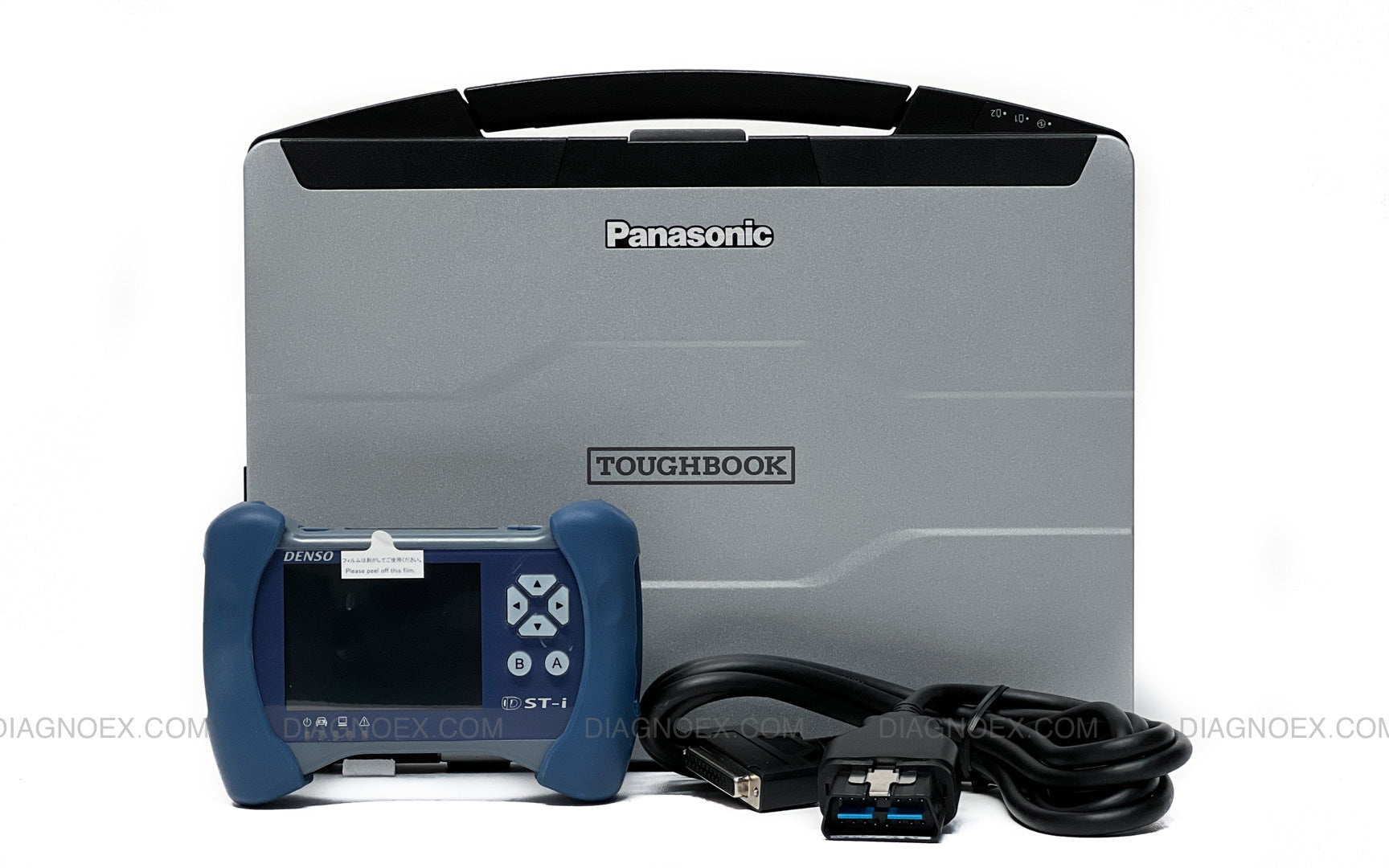

Honda i-HDS Workshop Pro Package with Denso DST-i Interface is the dealer-level diagnostic programming OEM scan tool for Honda and Acura Vehicles. The dealer technician uses the same software and interface for diagnostic and program Honda Acura cars. Master Technicians with locksmith license use for immobilizer functions and ADAS calibrations.

The Honda i-HDS diagnostic package pre includes the Honda DST-i interface, select the computer, and subscription. The i-HDS software will install as per the manufacture's specifications and settings. If you already have LSID, it will be integrated into the i-HDS subscription.

Interface Manufacturer: DENSO - MADE IN JAPAN
Computer
Subscription

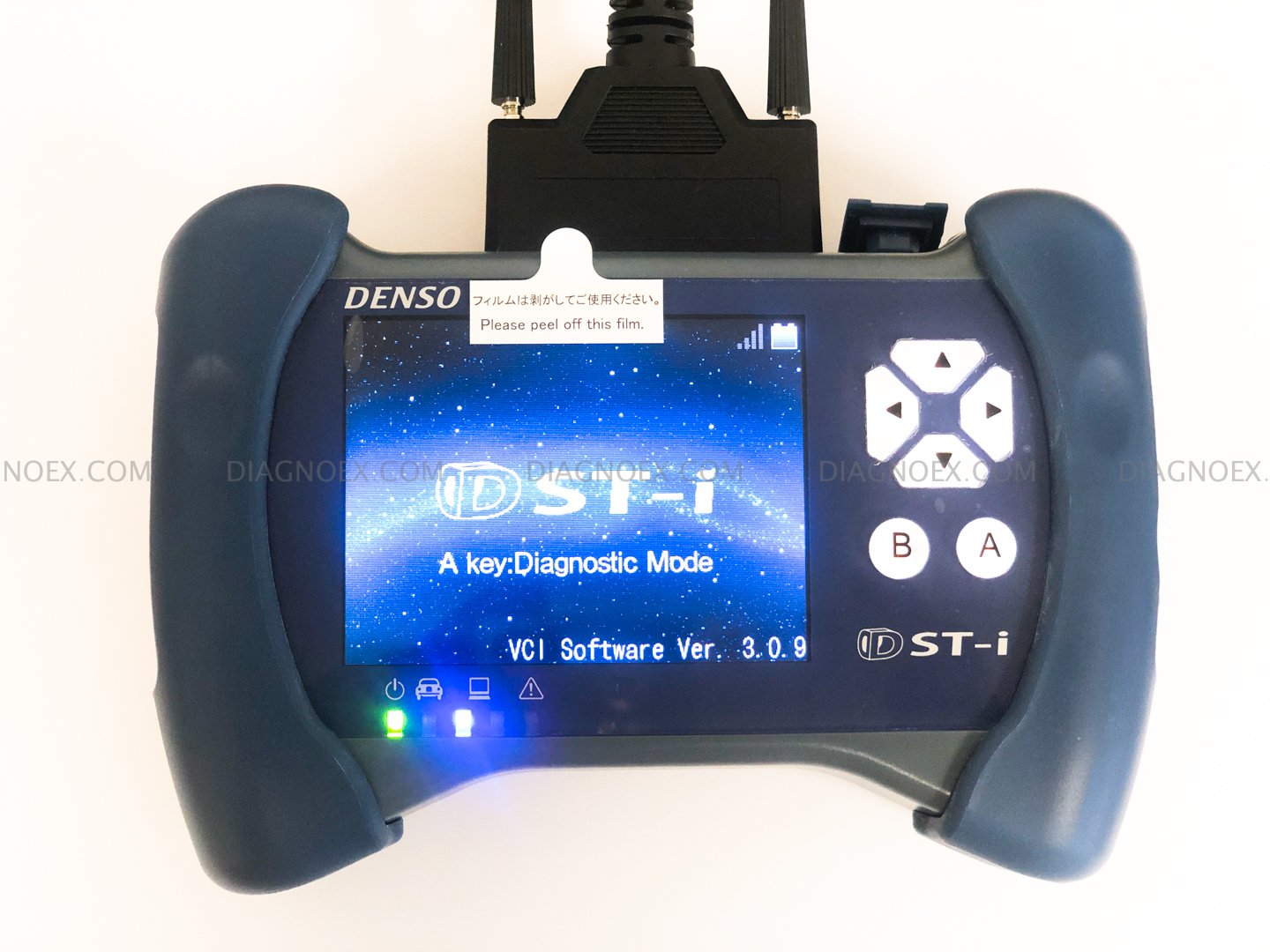

  • Honda DST-i Overview

    Product Specifications
    CPU: 32-bit RISC microcomputer
    Dimensions: 160 mm W x 110 mm H x 45 mm D
    External Interface- DC Jack: Option port for function expansion
    External Interface- SD Memory Card: Slot x 1 (supporting SC and SDHC memory cards)
    External Interface- Vehicle Communication: ISO9141, CAN, P-Line, Diag-X, Diag-H, SCS, WEN
    External Interface- Wireless LAN: IEEE802.11b / IEEE802.11g / IEEE802.11n (24 GHz band) compliant
    Input Device - Operation Keys: 6 keys
    LCD Display Color: Max. 260000 colors
    LCD Resolution: QVGA (320 x 240 dots)
    LCD Size: 3.5" TFT color LCD
    Memory- Built in Flash ROM: 16 MB
    Memory- SDRAM: 16 MB
    Memory-EEPROM: 32 KB
    Operating Humidity: 10 to 90% (No condensation)
    Operating Temperature [Storage Temperature]: 0 to 50°C [-20 to 70°C]
    Power Consumption: Normally 1.5 W (12 VDC), Max. 2.5 W (12 VDC)
    USB Power (BUS power): DC 4.75 to 5.25 V
    Vehicle Power Supply: DC 6.8 to 32V (Datalink cable) (36 V:within one hour)
    Weight: Approx.350

  • DST-i Part Number

    3 Meter DLC Cable : DSCDLCCABL

    3 Meter USB Cable : DSCUSBCBLWSP

    USB Cable Lock : DSCUSBLOCK

    USB Cable Spacer : DSCUSBSPAC

    SD Card : DSCSDCARD

    Tool Case : DSCCASE

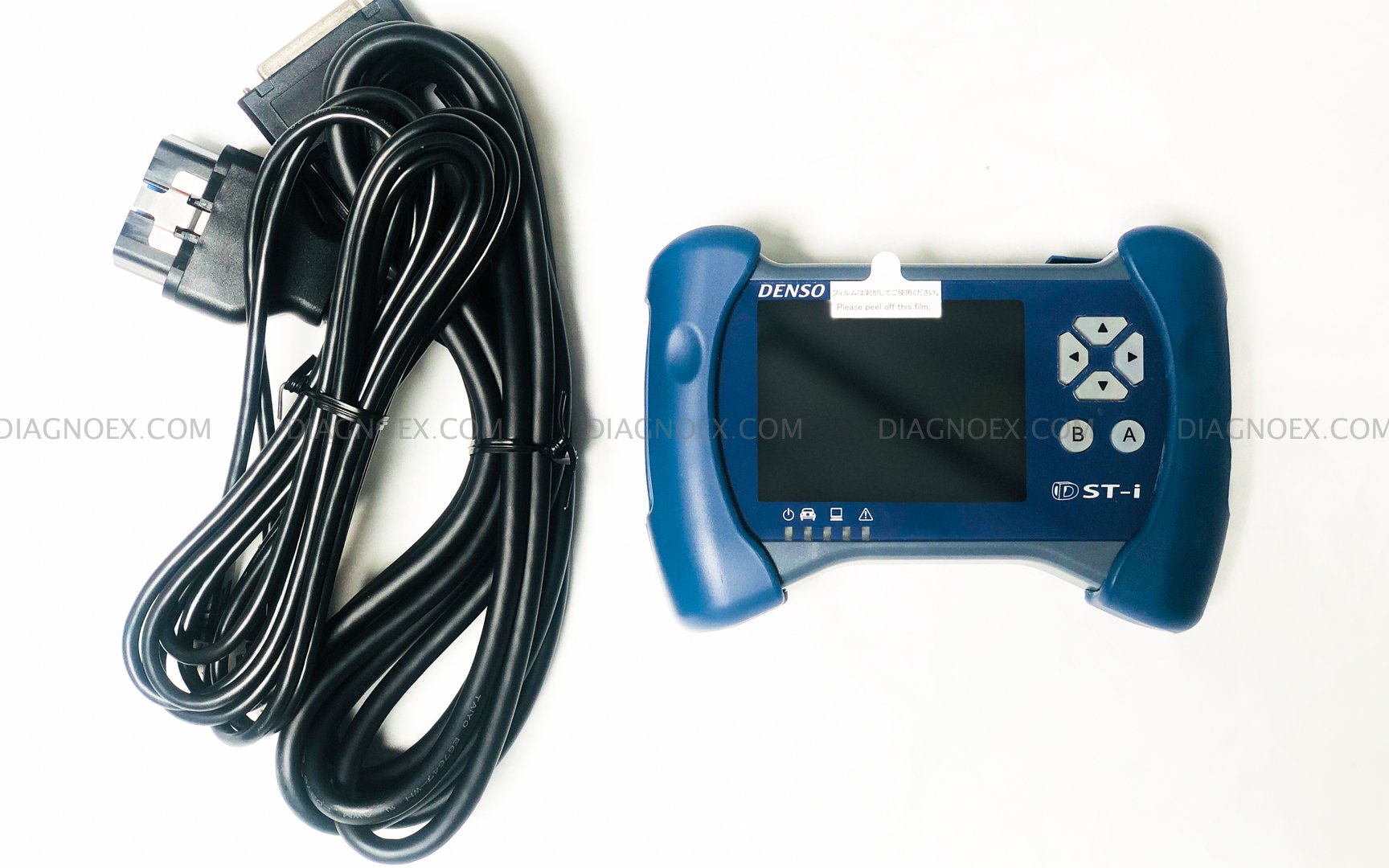

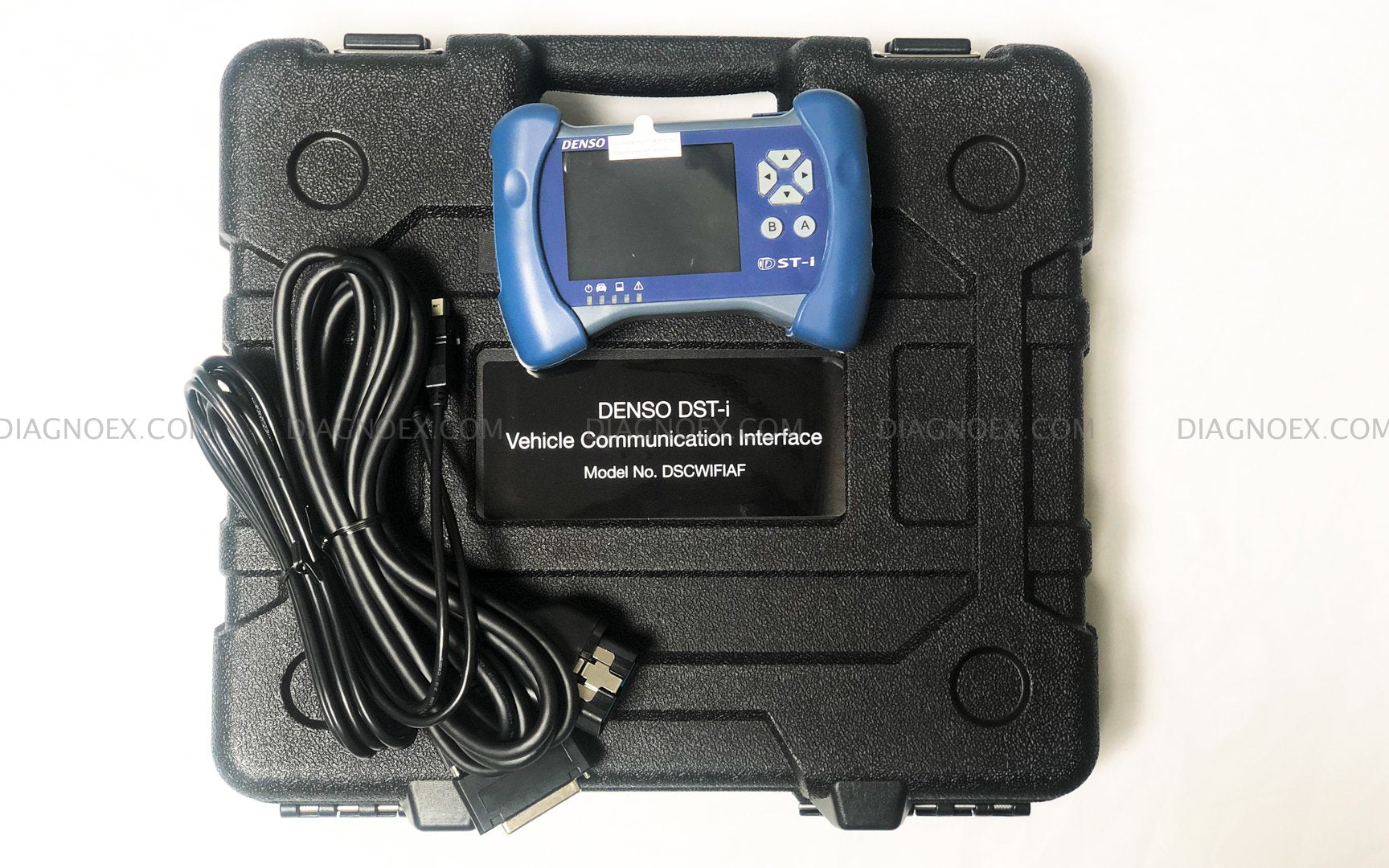

  • What's in the box

    3 Meter DLC Cable

    3 Meter USB Cable

    USB Cable Lock

    USB Cable Spacer

    SD Card

    Tool Case

    • Customer Review

      Be first to review this product
    • User Manuals & Technical Service Bulletin

    • Cables, Parts & Accessories

    • Frequently Asked Questions

      Q: Do DST-i and i-HDS support immobilizer programming?
      A: Yes, you can use your locksmith account to do immobilizer functions
