Honda i-HDS Workshop Pro Package Toughbook 55

Honda i-HDS Workshop Pro Package with Denso DST-i Interface is the dealer-level diagnostic programming OEM scan tool for Honda and Acura Vehicles. The dealer technician uses the same software and interface for diagnostic and program Honda Acura cars. Master Technicians with locksmith license use for immobilizer functions and ADAS calibrations.

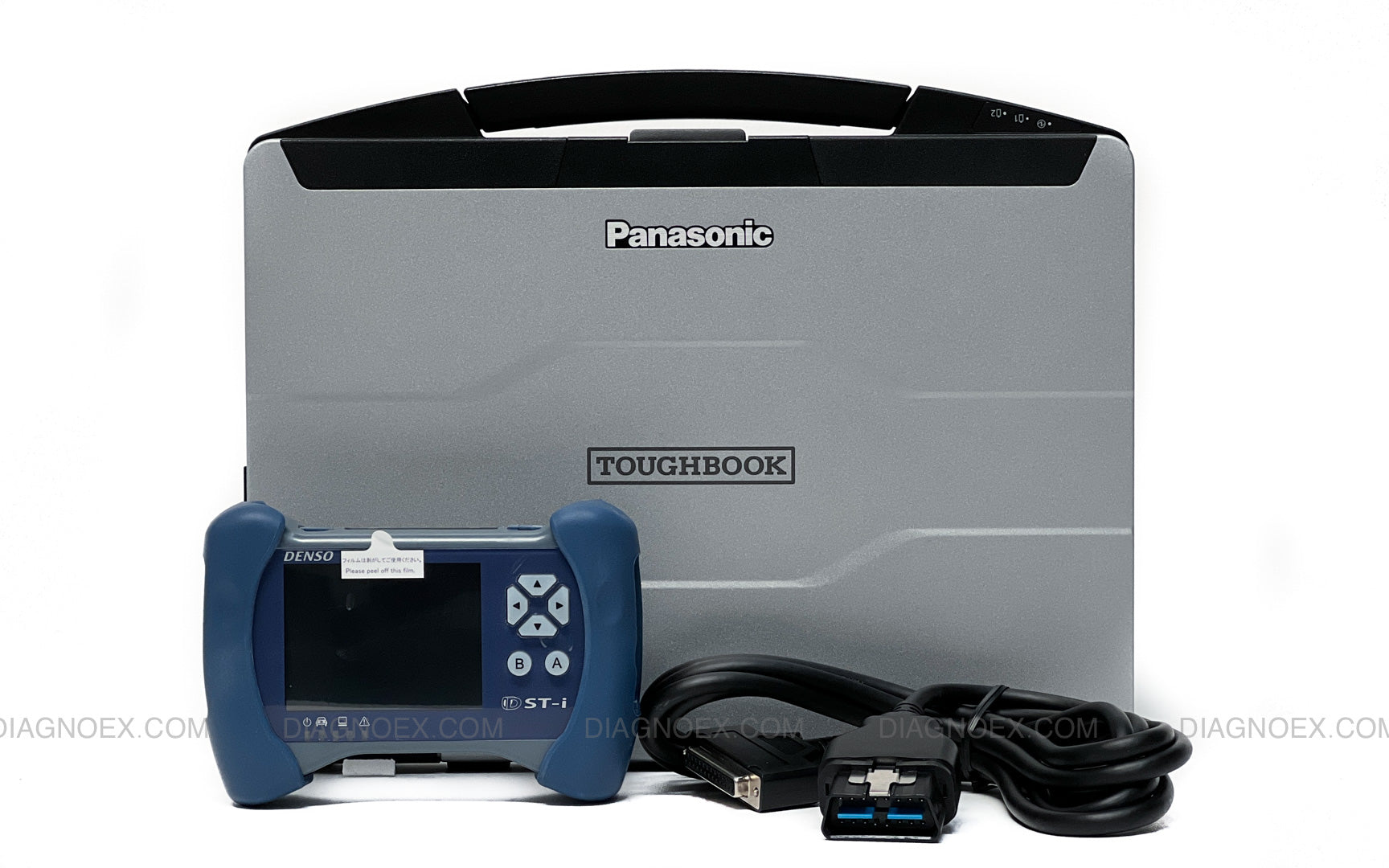

The Honda i-HDS diagnostic package pre includes the Honda DST-i interface, Panasonic Toughbook 55 computer, and iHDS subscription. The i-HDS software will install as per the manufacture's specifications and settings. If you already have LSID, it will be integrated into the i-HDS subscription.

• OVERVIEW
• SPECS & PART #
• IN THE BOX
• REVIEW
• DOWNLOADS
• ACCESSORIES
• Q&A

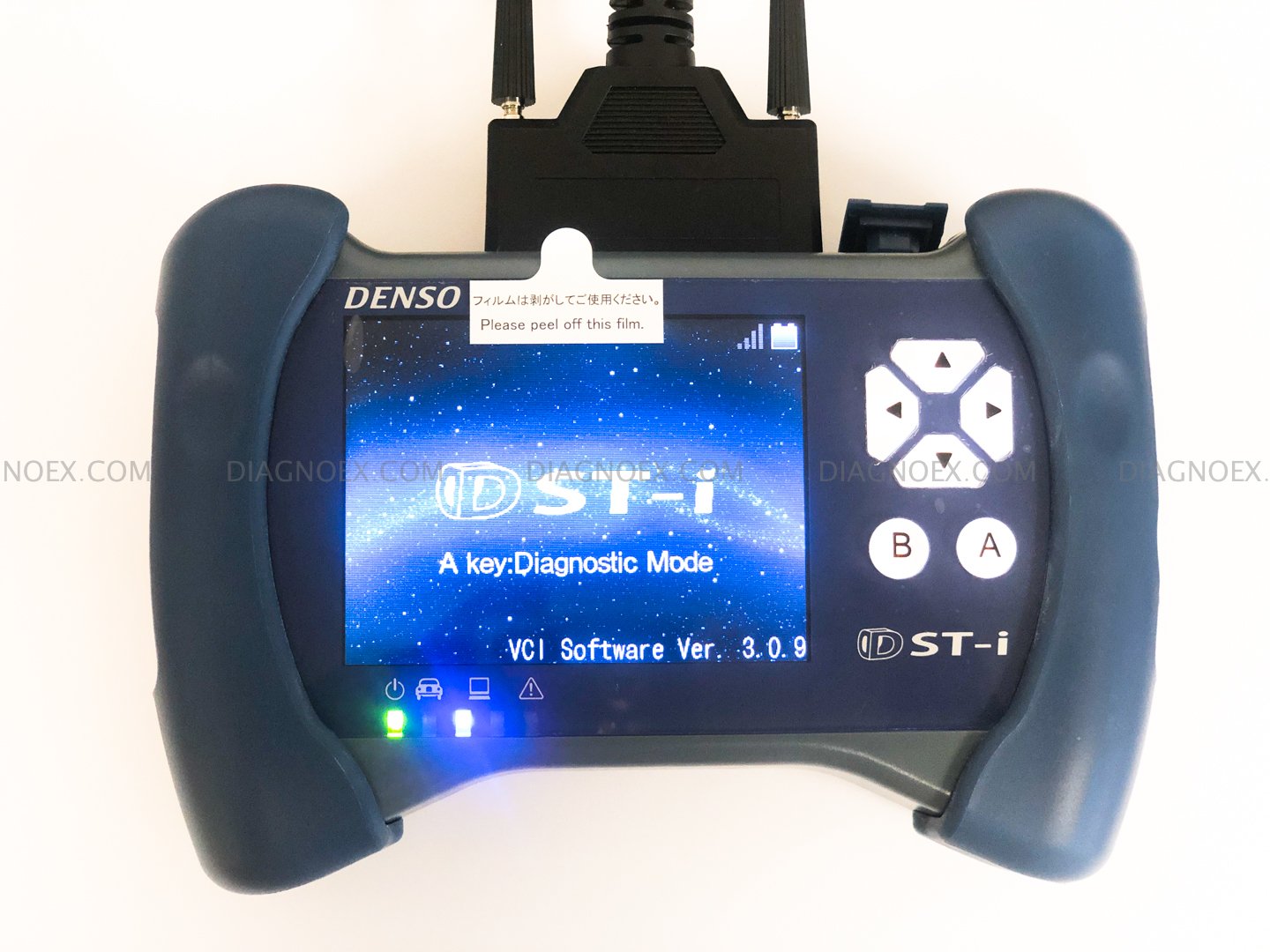

• Honda DST-i Workshop Pro Package Overview

  Product Specifications
  CPU: 32-bit RISC microcomputer
  Dimensions: 160 mm W x 110 mm H x 45 mm D
  External Interface- DC Jack: Option port for function expansion
  External Interface- SD Memory Card: Slot x 1 (supporting SC and SDHC memory cards)
  External Interface- Vehicle Communication: ISO9141, CAN, P-Line, Diag-X, Diag-H, SCS, WEN
  External Interface- Wireless LAN: IEEE802.11b / IEEE802.11g / IEEE802.11n (24 GHz band) compliant
  Input Device - Operation Keys: 6 keys
  LCD Display Color: Max. 260000 colors
  LCD Resolution: QVGA (320 x 240 dots)
  LCD Size: 3.5" TFT color LCD
  Memory- Built in Flash ROM: 16 MB
  Memory- SDRAM: 16 MB
  Memory-EEPROM: 32 KB
  Operating Humidity: 10 to 90% (No condensation)
  Operating Temperature [Storage Temperature]: 0 to 50°C [-20 to 70°C]
  Power Consumption: Normally 1.5 W (12 VDC), Max. 2.5 W (12 VDC)
  USB Power (BUS power): DC 4.75 to 5.25 V
  Vehicle Power Supply: DC 6.8 to 32V (Datalink cable) (36 V:within one hour)
  Weight: Approx.350


• DST-i Part Number

  3 Meter DLC Cable : DSCDLCCABL

  3 Meter USB Cable : DSCUSBCBLWSP

  USB Cable Lock : DSCUSBLOCK

  USB Cable Spacer : DSCUSBSPAC

  SD Card : DSCSDCARD

  Tool Case : DSCCASE

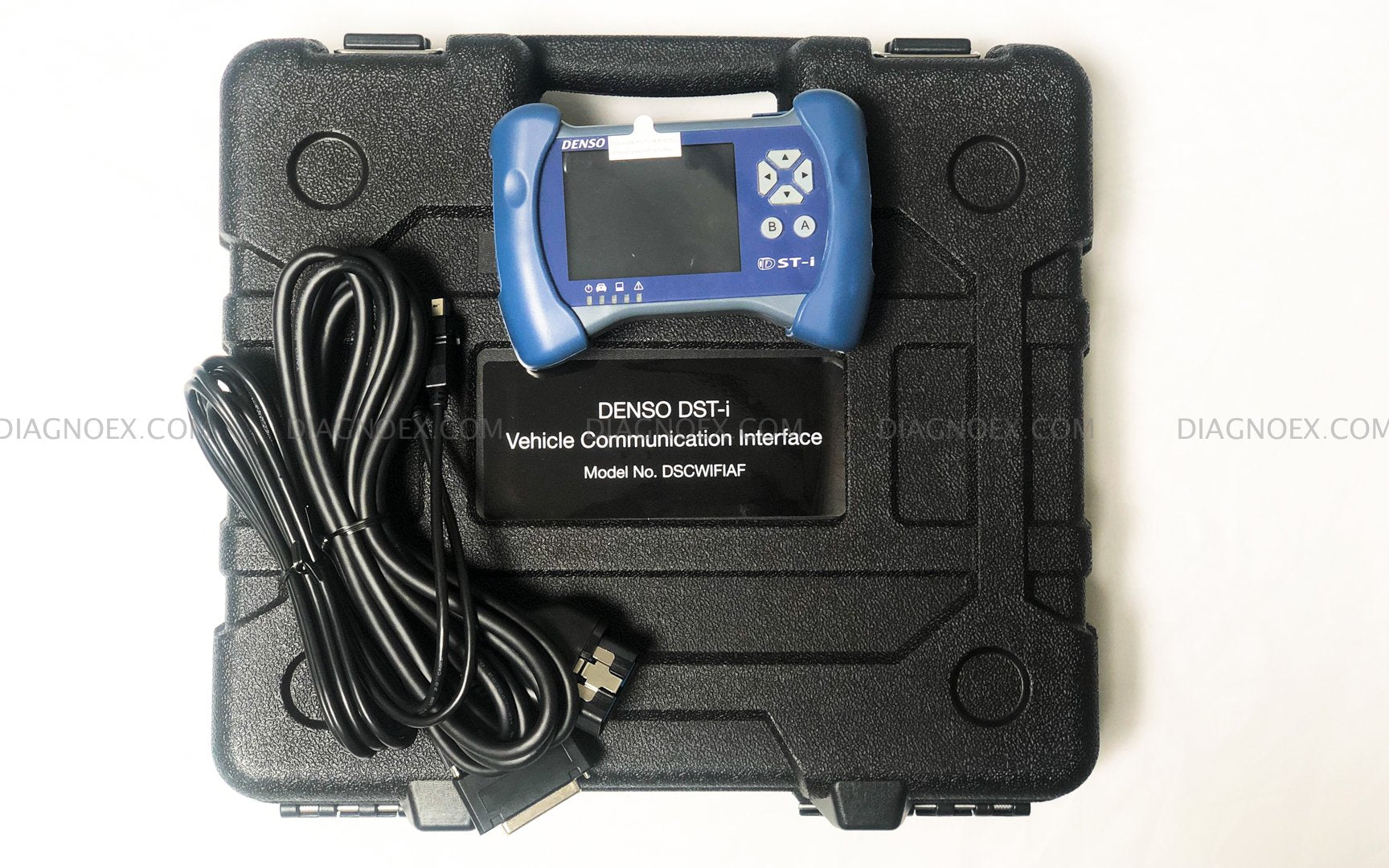

• What's in the box

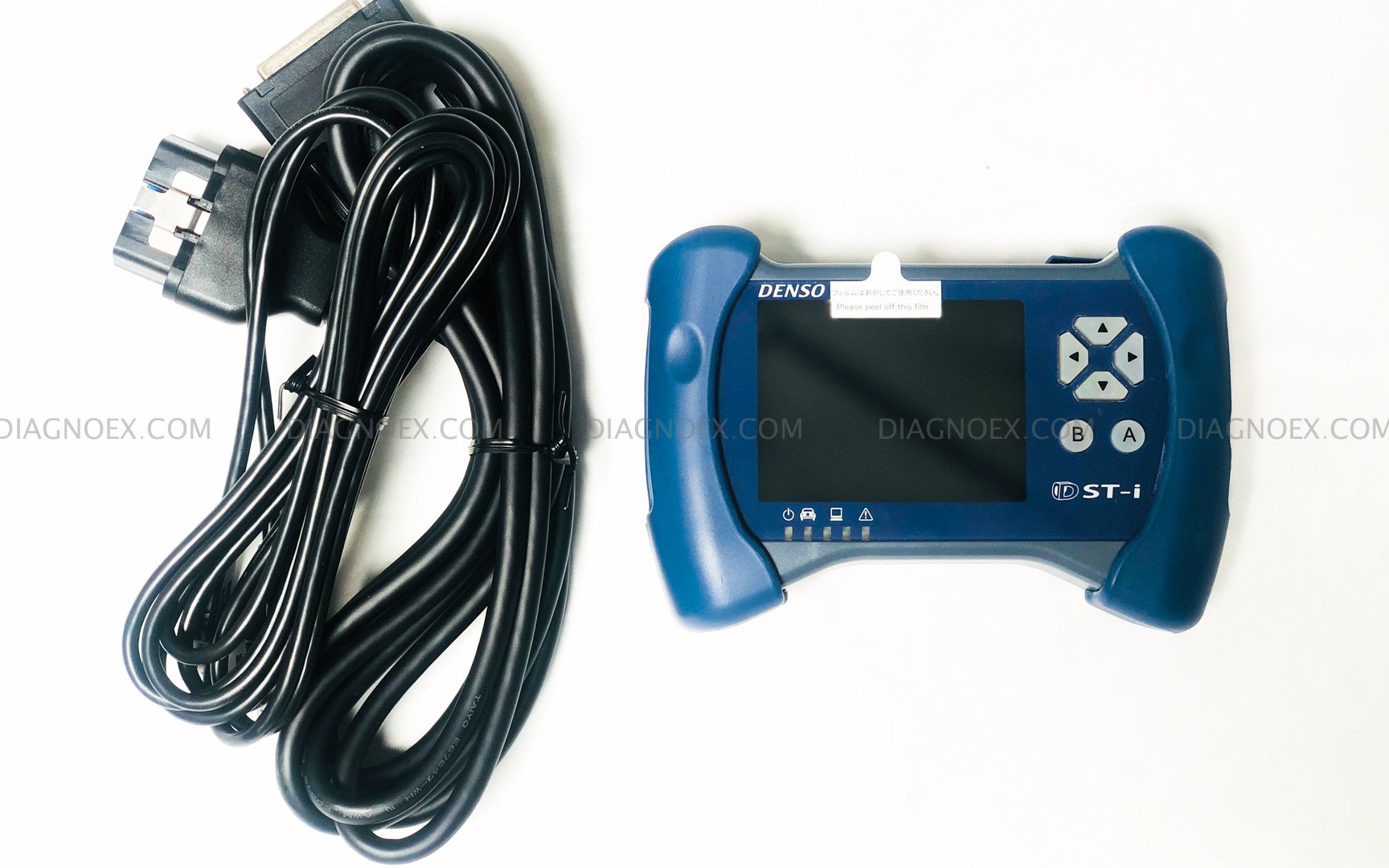

  3 Meter DLC Cable

  3 Meter USB Cable

  USB Cable Lock

  USB Cable Spacer

  SD Card

  Tool Case

• Customer Review

  Be first to review this product

• User Manuals & Technical Service Bulletin

• Cables, Parts & Accessories

• Frequently Asked Questions

  Q: Do DST-i and i-HDS support immobilizer programming?
  A: Yes, you can use your locksmith account to do immobilizer functions
