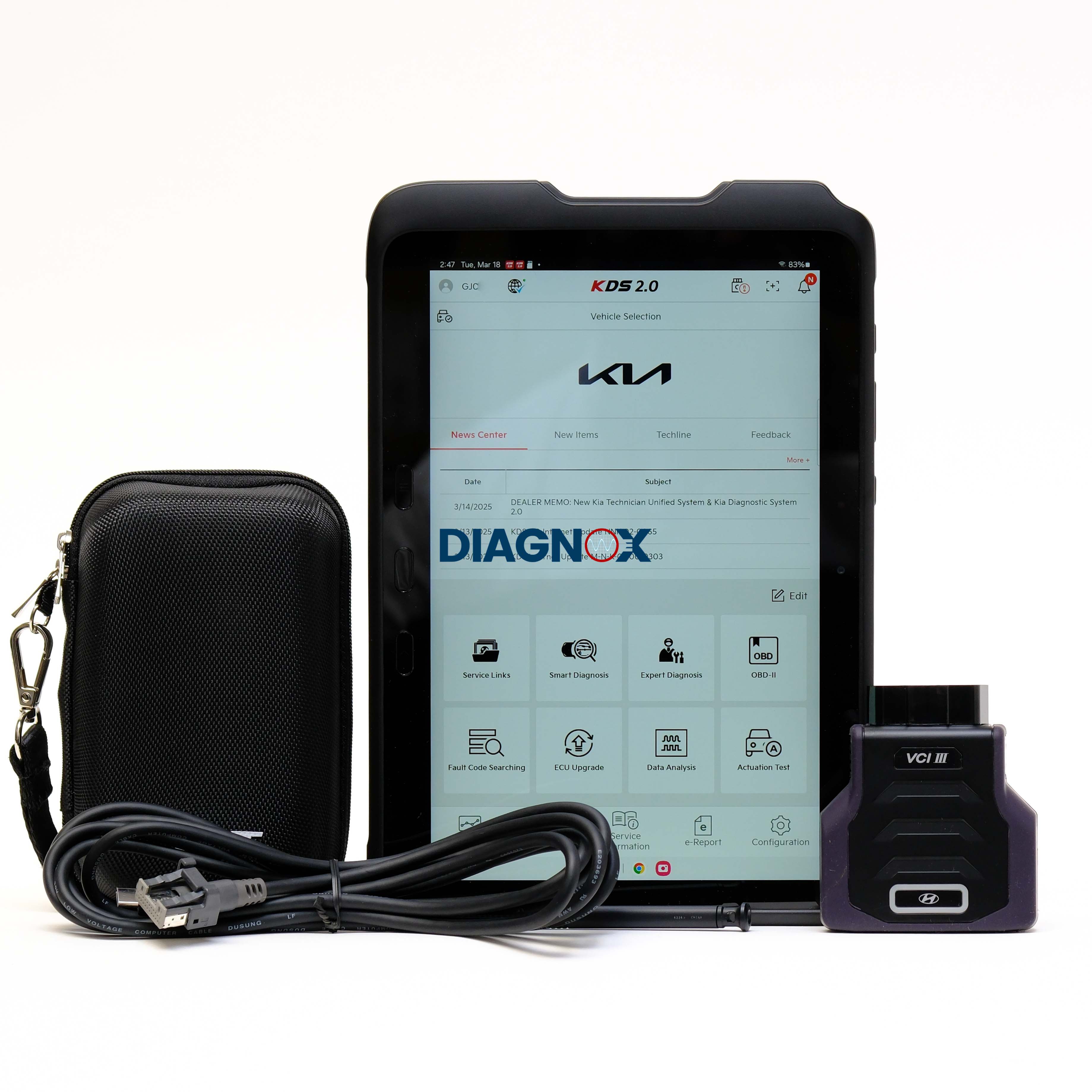

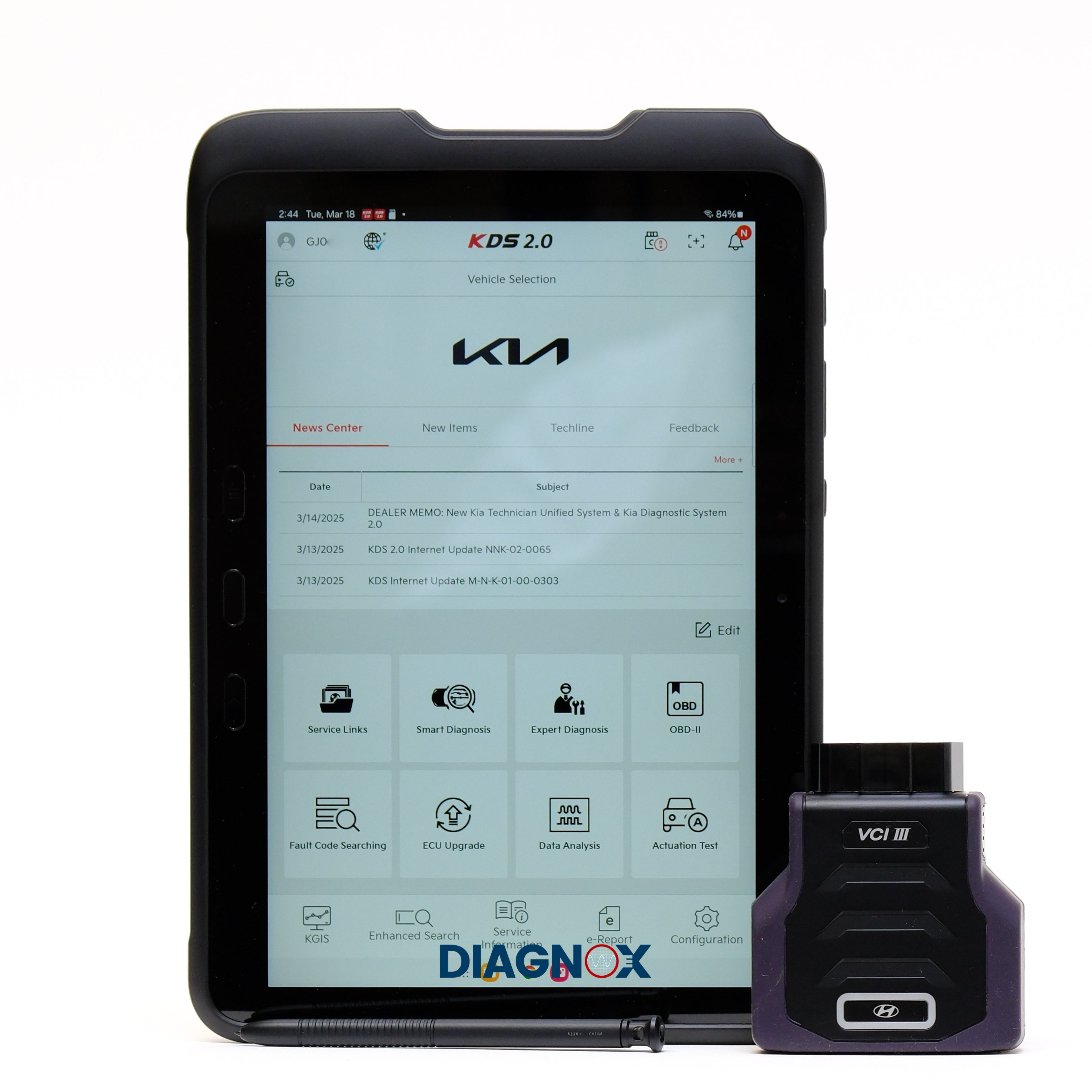

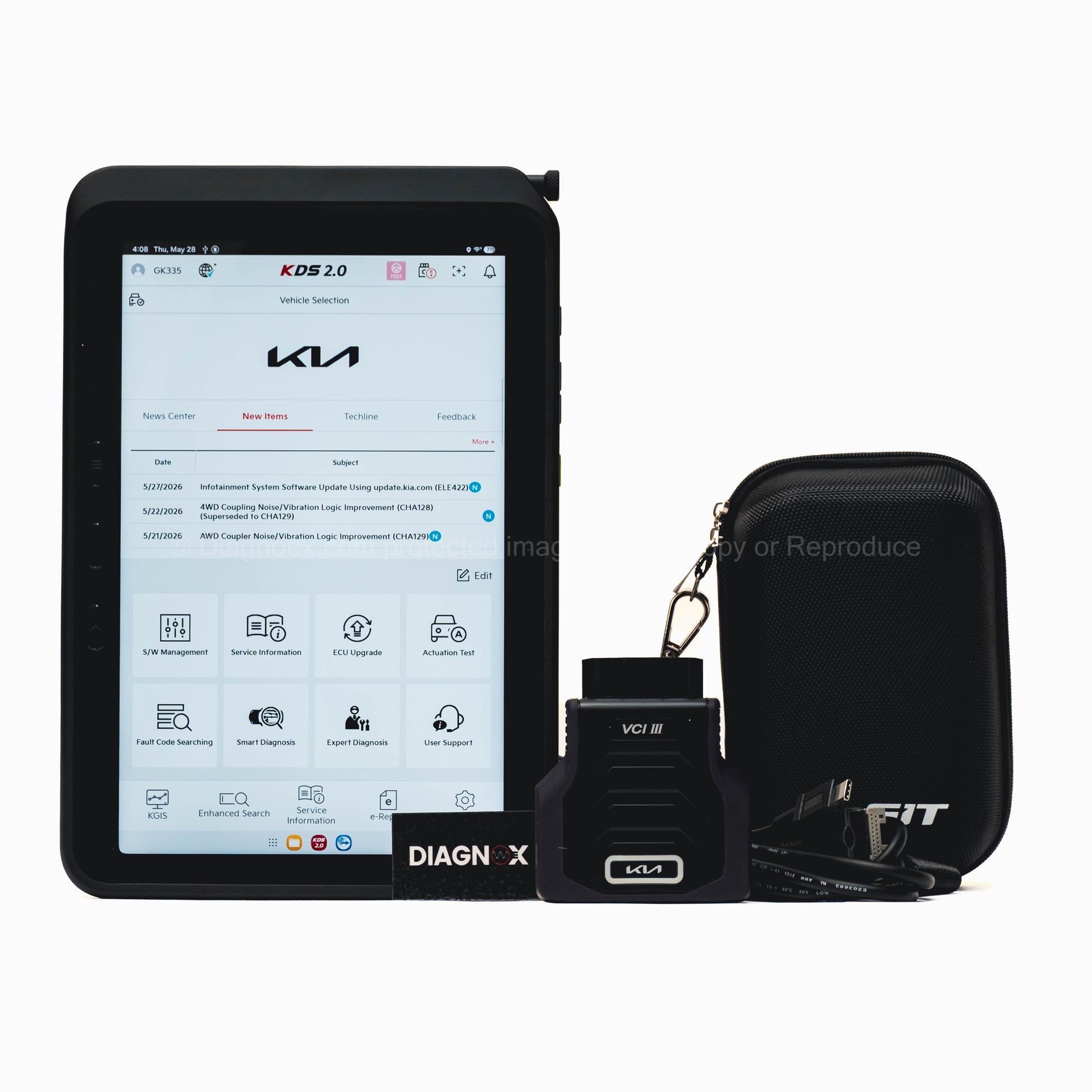

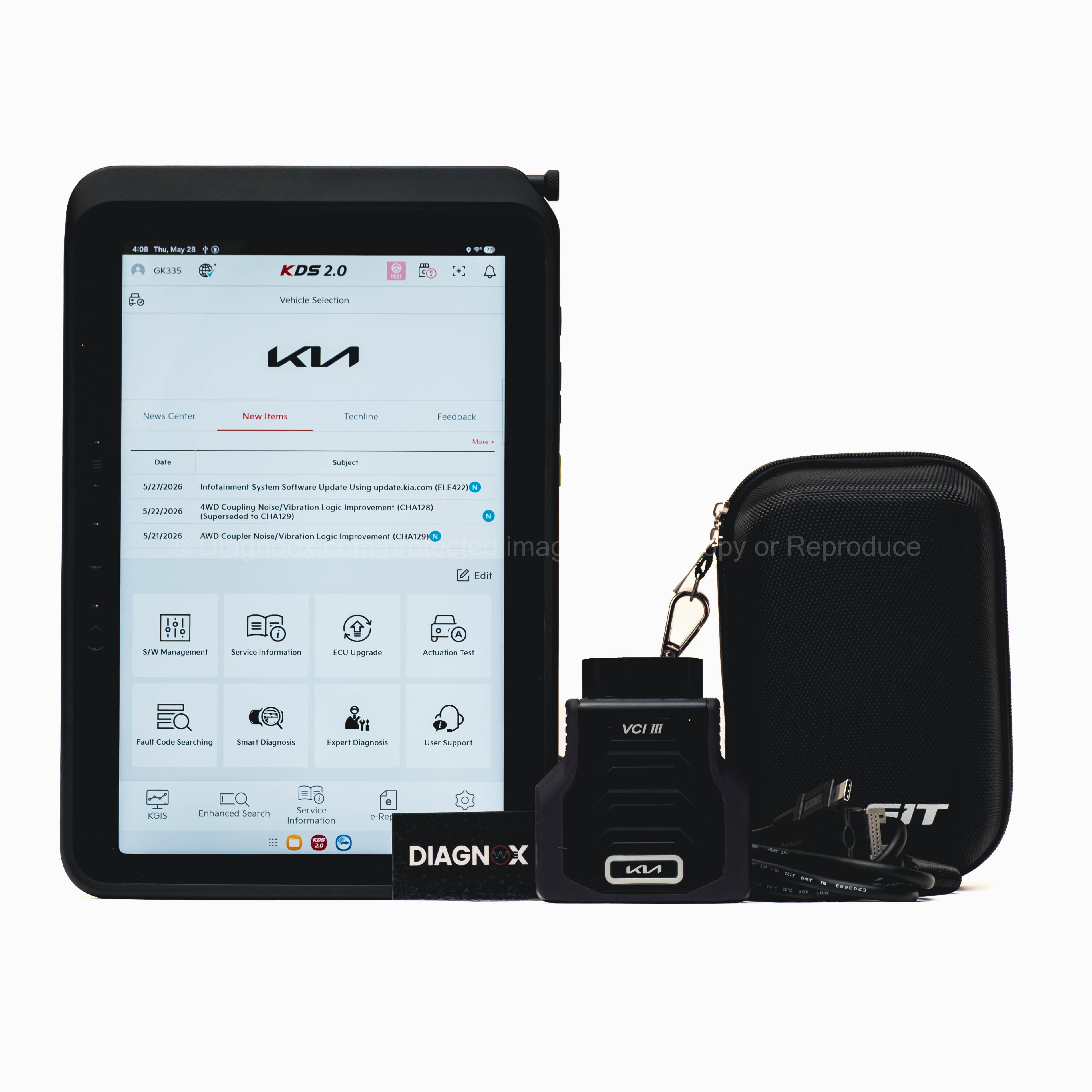

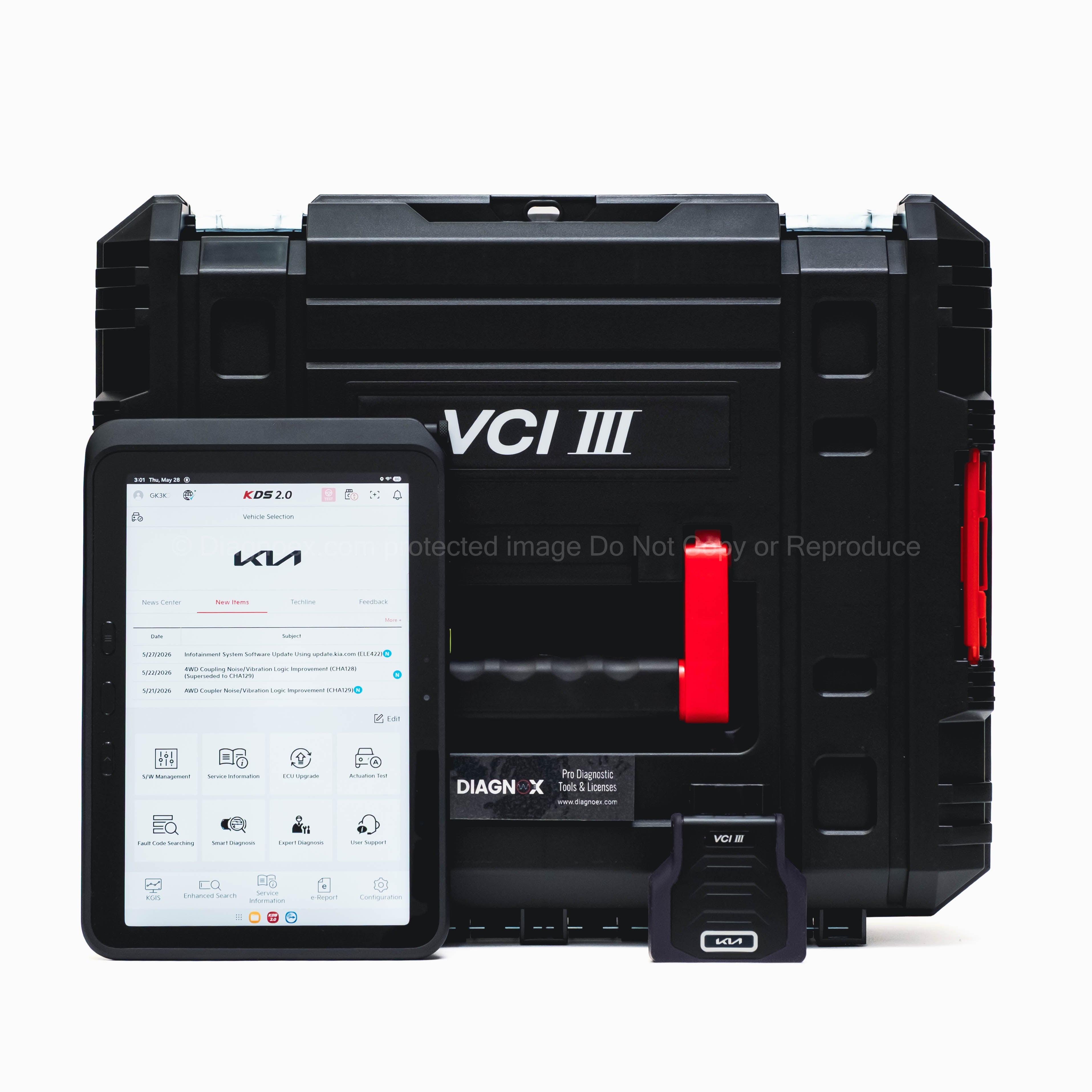

Kia KDS 2.0 VCI3 Factory Pro Diagnostic Scan Tool

· Kia VCI3 Main Module (P/N: G1XTDMN016)
· USB Type C to 19P cable (P/N: G1XDDCA020)
· Carrying Pouch (P/N: G1XDDHA009)
· Samsung Tab Active5 Pro Tablet 256GB (SM-X350)
· Kia KDS 2.0 Software License 1 Year

Kia KDS 2.0 Application Vehicle Coverage and Reference Chart
Applicable to U.S. specification vehicles only
Updated July 2025

*Contact Diagnoex (diagnoex.com) for the full list of supported vehicles

Frequently Asked Questions (FAQs)
Kia KDS 2.0

Q: What does this tool do?
A: This is Kia's official factory OEM diagnostic scan tool, the same system used by dealership technicians. It performs full vehicle diagnostics, control module programming, ADAS calibration and immobilizer related work.

Q: What model years does it cover?
A: Coverage includes all current Kia models, including the latest model year vehicles just released from the factory.

Q: What other benefits does it provide?
A: The system includes full access to Kia’s factory service information, repair manuals, wiring diagrams, technical service bulletins, and diagnostic procedures. Exactly the same resources available to dealer technicians.

Q: What is the warranty coverage?
A: As an Authorized Hyundai Kia Genesis distributor, we provide factory 3-year warranty for the tool. Active licenses required and warranty does not cover accidental damage, misuse, or abuse.

Q: How are software updates handled?
A: Updates are delivered online directly from Kia's servers. The system checks automatically and applies updates several times per week. Frequent updates are required to maintain compatibility with the latest vehicles and functions.

Q: What is included with the subscription license?
A: The package includes a 1-year Kia KDS 2.0 software license. After the first year, the license can be renewed annually at a cost of $1,680.

Q: Can it perform immobilizer and key programming functions?
A: Yes. Immobilizer, key programming, and PIN code functions are supported when used with a valid NASTF VSP account. A per-vehicle key code fee may apply.

Q: Can it perform ADAS calibrations?
A: Yes. It supports all factory spec ADAS (Advanced Driver Assistance Systems) calibrations according to Kia manufacturer specifications.

Q: Does it work outside the USA?
A: This product is compatible with U.S. specification vehicles only.

Q: Does it work in Canada or other countries?
A: It will only function with U.S. specification vehicles.

Q: I’m a traveling technician. Will it work in South America or the Middle East?
A: Licenses are available exclusively for U.S. specification vehicles and must be used within the USA.

Q: Do you ship Kia tools outside the USA?
A: As an authorized distributor, we do not ship Hyundai, Kia, or Genesis products outside the United States.

VCI III Interface
· Integrated functionality - combines ECI module (ethernet communication), CAN FD module, and commercial adapter into one unit.
· Enhanced wireless performance - extended range up to 30 m (vs. 10 m on VCI II) and faster connections (5 s vs. 15 s).
· Improved diagnostic speeds - 10-30% faster diagnostics and ECU upgrades over wireless and USB.
· Reduced heat generation - runs cooler during extended use compared to VCI II
Manufacturer: GIT
Made in Korea

Samsung SM-X350 Tablet
Model: Galaxy Tab Active5 Pro
Processor: Octa-Core Qualcomm Snapdragon
RAM: 8 GB
Flash Memory: 256 GB
Display: 10.1 Inch, TFT, Touch Screen 1920 x 1200, 16:10
Data Link Protocol: Wi-Fi, Bluetooth
Camera Feature: Rear Camera: 12.0 MP Front Camera: 8.0 MP
Sensors: Fingerprint; RGB Light Sensor; Geomagnetic; Gyro;
Input Device Support Type: S Pen
OS: Android 16
Dimensions & Miscellaneous:
Width: 170.2mm Depth: 242.9mm Height: 10.2mm
Weight: 0.68 Kg
Interfaces: USB 3.2 Gen 1, 3.5mm Stereo
