Subaru SSM License Denso DST-010 Workshop Diagnostic Pro Package

new

Subaru SSM License Denso DST-010 Workshop Diagnostic Pro Package

SKU: 1124831

Authorized Reseller

3 Year Warranty

$8,782

Shipping calculated at checkout.

In stock

Share:

Payment & Security

Your payment information is processed securely (PCI DSS Level 1 / 3D Secure). We do not store or have access to your credit card details. We accept ACH / wire payments, please contact us for more information.

Subaru SSM License Denso DST-010 Workshop Diagnostic Pro Package

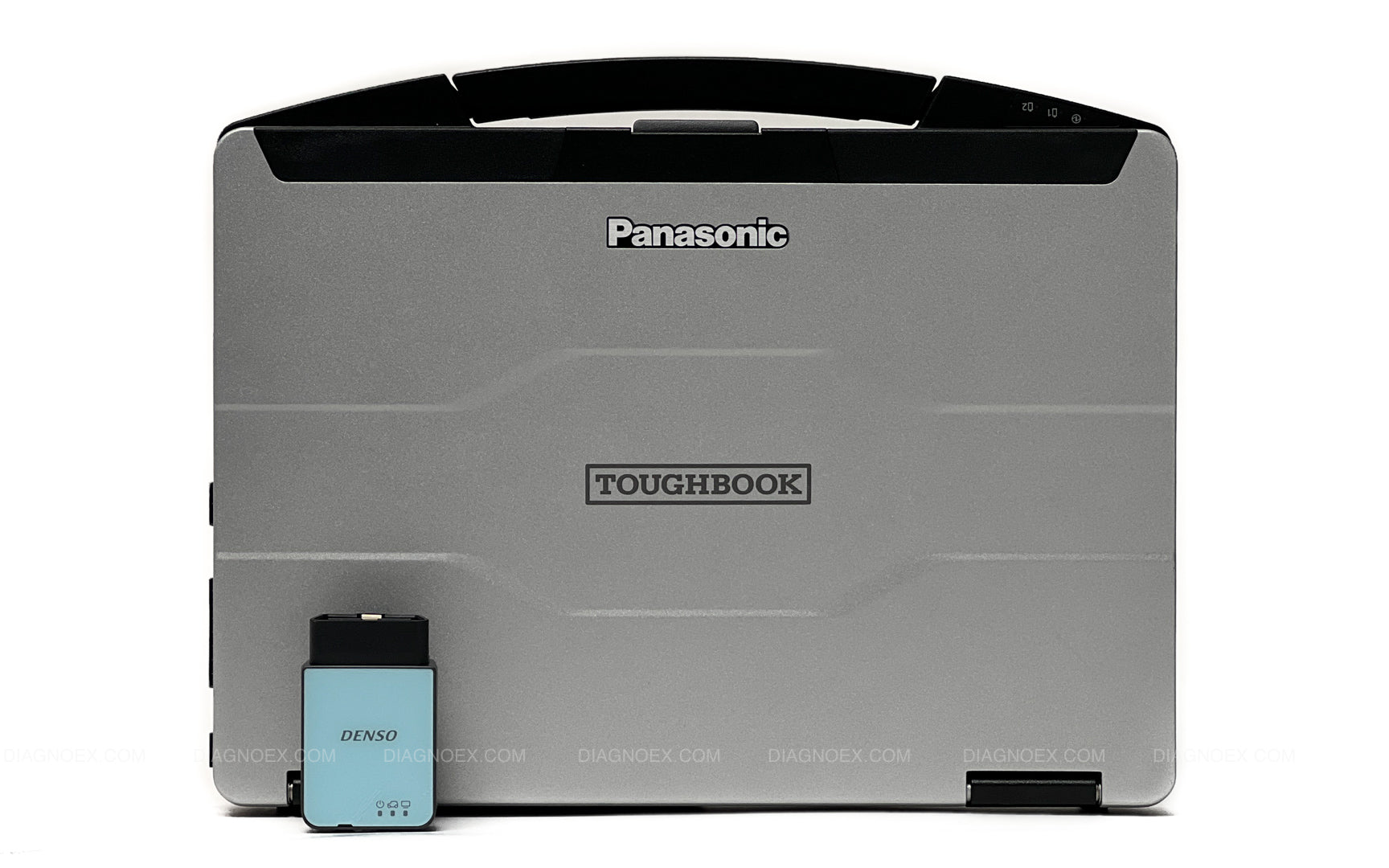

The Subaru workshop package comes with Subaru Denso DST-010 interface, Subaru SSM4 and new SSM5 License Software Installed on Panasonic Toughbook 55 makes a dealer level system. Denso DST-010 is the new diagnostic interface for Subaru SSM4 and SSM5 diagnostic programming software. Denso DST-010 first use in 2022
Glass installers and Auto Bodyshop use to perform ADAS calibration by using this tool.
Key Features: All system diagnosis, data recording, clear error codes, active tests, project management, injector compensation, ECU memory reset, injection quantity correction, MAF correction, seat weight calibrations, steering angle relearns, ADAS EyeSight calibrations, fuel pump learning reset, plus access to smart key registration and keyless entry. Smart Key Registration & Keyless fobs
This is the same diagnostic tool used by the Subaru dealership technicians.

Manufacturer: DENSO - SUBARU
Made in Japan

Features:

Subaru SSM5 Diagnostic
2026 Outback | Legacy | WRX

Subaru GTS+ Diagnostic
2022 Solterra
2026 Uncharted | Trailseeker

Key Features

New Toughbook FZ-55

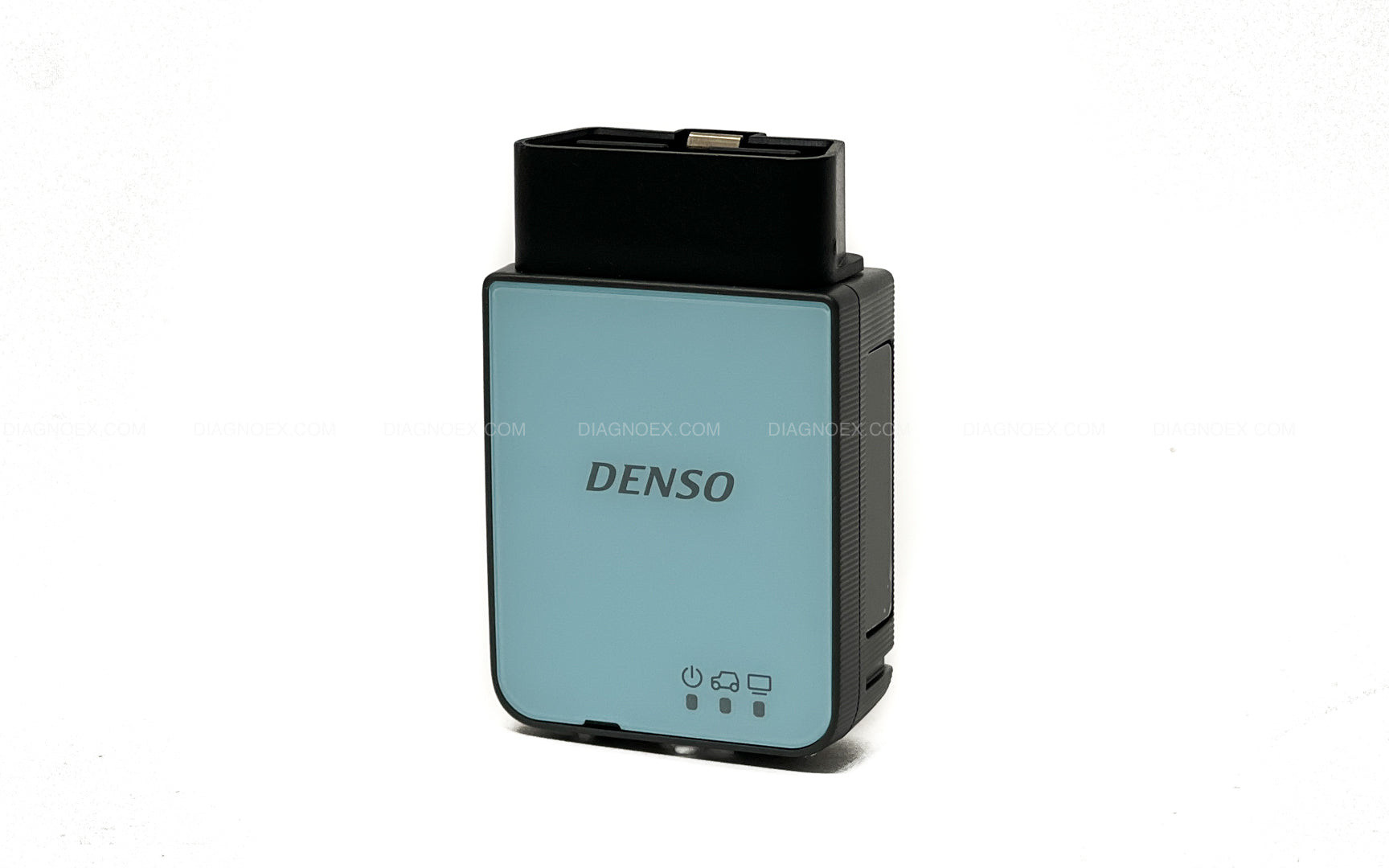

Denso DST 010 interface
Subaru SSM3 SSM4
Cloud Base SSM5 and GTS+
Works on Electric Cars
MAF Correction
ADAS EyeSight Calibrations
Immobilizer Function

Country:

JAPAN

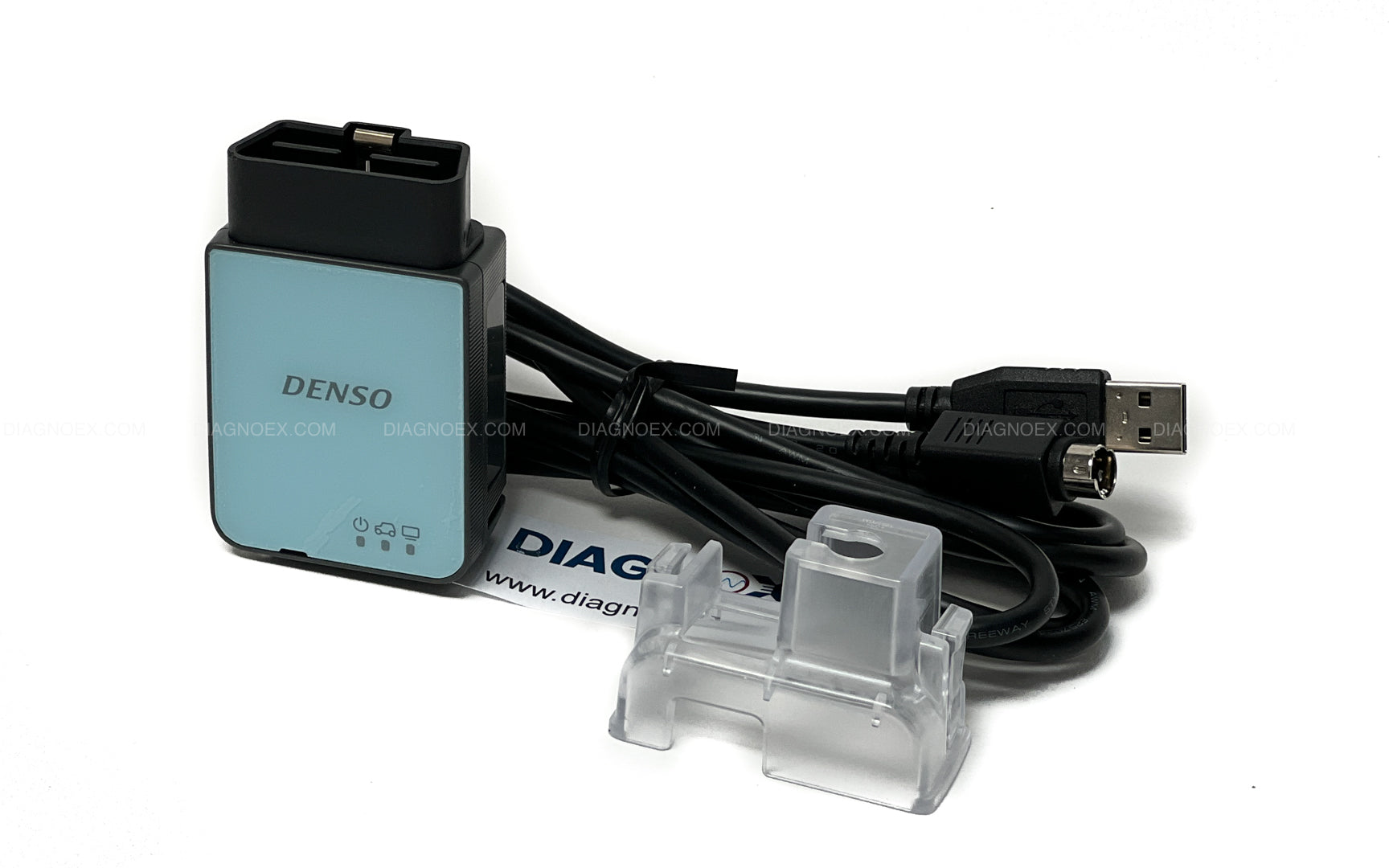

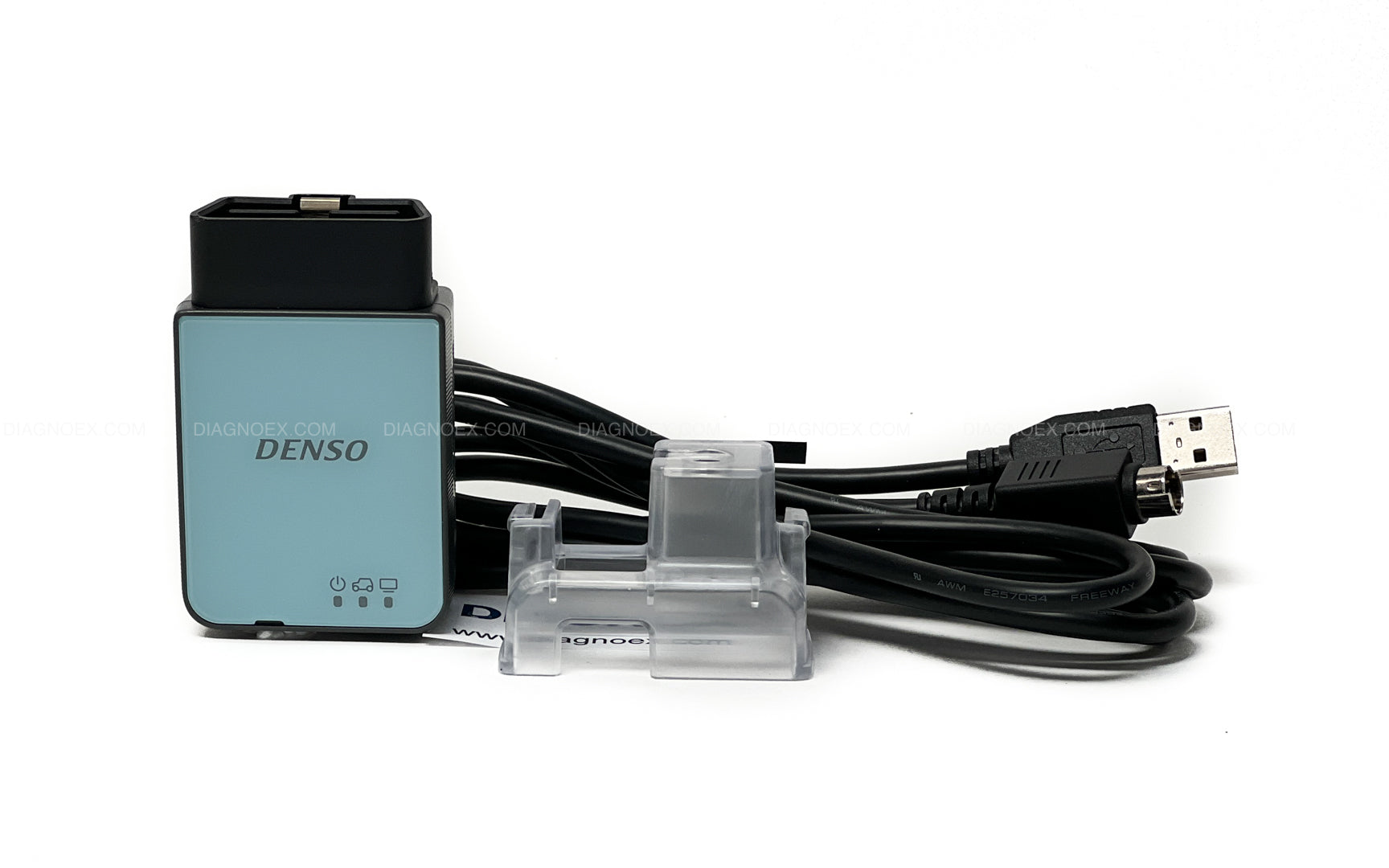

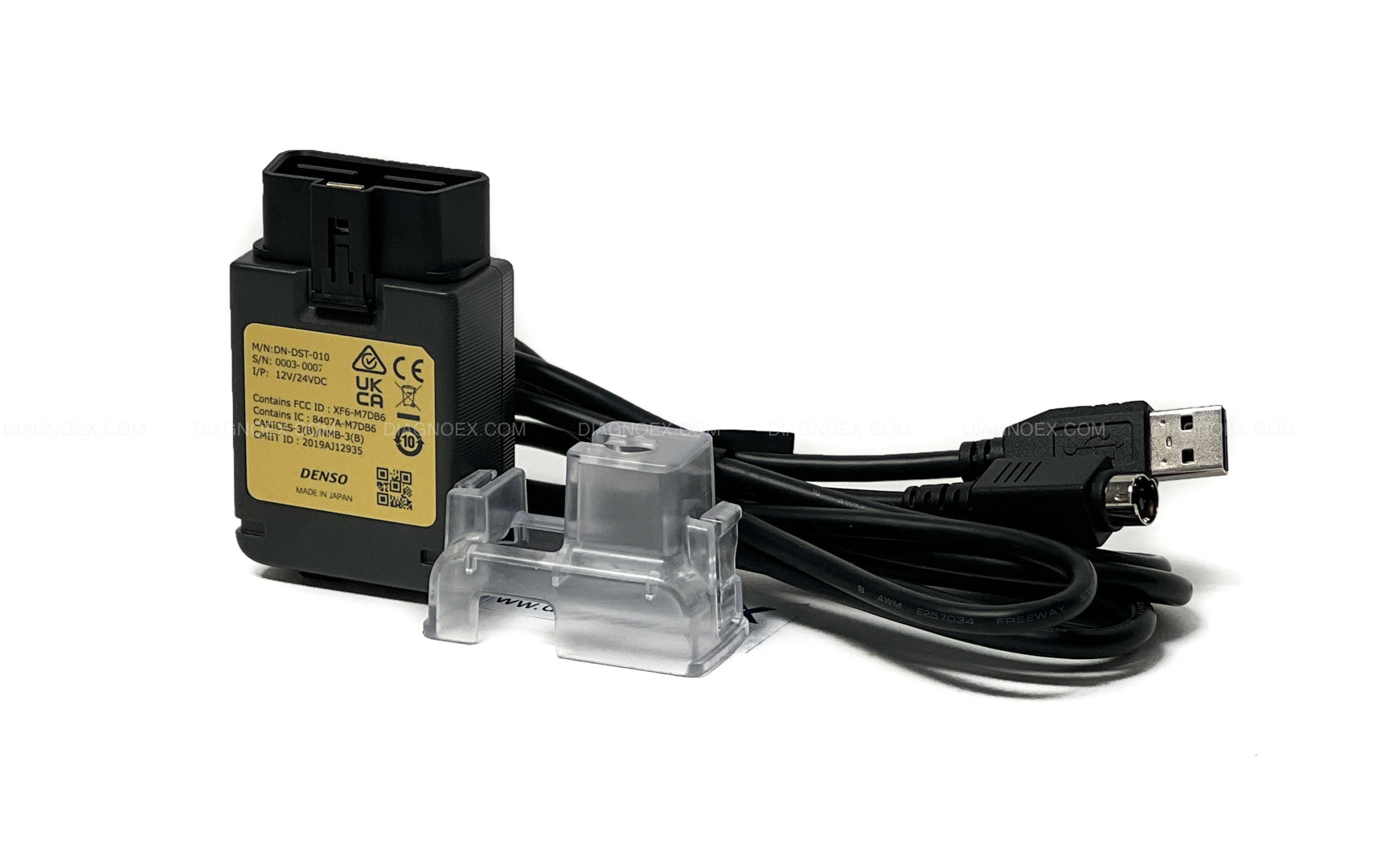

Interface:
DENSO DST-010 Unit
USB Cable
USB Bracket
DENSO Instruction Manual

Computer:
Panasonic Toughbook FZ-55

License:
Subaru Select Monitor SSM3, SSM4
SSM5 Cloud Based
GTS+ Cloud Based

Subaru Diagnostic Tool CompatibilityNorth America / Canada

This guide identifies Subaru vehicle models compatible with SSMIII, SSM4, SSM5, and GTS+ diagnostic platforms.
To ensure proper vehicle diagnostics, use the diagnostic tool and software version specified for model year.
All genuine OEM Subaru diagnostic interfaces, scan tools, and software subscriptions are available from Diagnoex.com. The product links provided below.

	Model Year
	~11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26
Outback/Legacy	SSM3				SSM3/4	SSM4										SSM5
Crosstrek/Impreza	SSM3	SSM3/4				SSM4
Forester	SSM3			SSM3/4			SSM4
WRX	SSM3				SSM3/4	SSM4										SSM5
Ascent/Evoltis	-								SSM4
BRZ	-		SSM3/4				SSM4
Solterra	-											GTS+
Uncharted	-															GTS+
Trailseeker	-															GTS+

Subaru SSM Denso DST-010 Diagnostic Pro Package

Complete Subaru dealer-level diagnostic solution including DENSO DST-010 VCI and SSM5 software support for diagnostics, coding, programming, and vehicle maintenance.

View Product

Subaru SSM Denso DST-010 Diagnostic Pro Package

Subaru Select Monitor (SSM5) Software Subscription

Official Subaru Select Monitor 5 diagnostic software subscription providing dealer-level access to Subaru diagnostics and service functions.

View Product

Subaru Reprogramming CompatibilityNorth America / Canada

We have clarified the vehicle models that can use Flashwrite/Flashwrite2 and SSM5.
Please perform reprogramming using the appropriate reprogramming tool.

	Model Year
	~21	22	23	24	25	26
Outback/Legacy	FW/FW2		SSM5
Crosstrek/Impreza	FW/FW2			SSM5
Forester	FW/FW2				SSM5
WRX	FW/FW2		SSM5
Ascent/Evoltis	FW/FW2		SSM5
BRZ	FW/FW2	SSM5
Solterra	-	CUW+
Uncharted	-					CUW+
Trailseeker	-					CUW+

Subaru SSM Denso DST-010 Diagnostic Pro Package

Complete Subaru dealer-level diagnostic solution including DENSO DST-010 VCI and SSM5 software support for diagnostics, coding, programming, and vehicle maintenance.

View Product

Subaru Select Monitor (SSM5) Software Subscription

Official Subaru Select Monitor 5 diagnostic software subscription providing dealer-level access to Subaru diagnostics and service functions.

View Product

SSM5 VCI Compatibility

SSM5 recommends using the following VCI: DENSO DST-010

✓ ⇒ DST-010: All models available
☆ ⇒ DST-010: Only Blue, Dark Green and Green models are available (DST-i: NOT available)

	Model Year
	22	23	24	25	26
Outback/Legacy	-	✓	✓	✓	☆
Crosstrek/Impreza	-	-	✓	✓	✓
Forester	-	-	-	✓	✓
WRX	-	✓	✓	✓	✓
Ascent/Evoltis	-	✓	✓	✓	✓
BRZ	✓	✓	✓	✓	✓

Interface:
Model: DN-DST-010
CPU: 32-bit microcomputer
Connection: USB2.0 (Mini-DIN), PC communication
Wireless: Wi-Fi IEEE802.11bgn 2.4GHz, Bluetooth 4.0/Class1
Storage: SD/SDHC card slot ×1
Vehicle comm.: ISO9141 (K/L), HS-CAN, CAN-FD*, DoIP (Ethernet)
OS: Windows 10/11, CPU 1GHz+, 2GB RAM, 1GB disk (excl. ARM)

Computer:
Panasonic Toughbook FZ-55

License:
Subaru Select Monitor SSM3, SSM4
Cloud base SSM5
Toyota GTS+ (only work with Subaru)

Denso DST-010 Interface Subaru Dealer Scan Tool
