Subaru SSM License Denso DST-i Workshop Diagnostic Pro Package

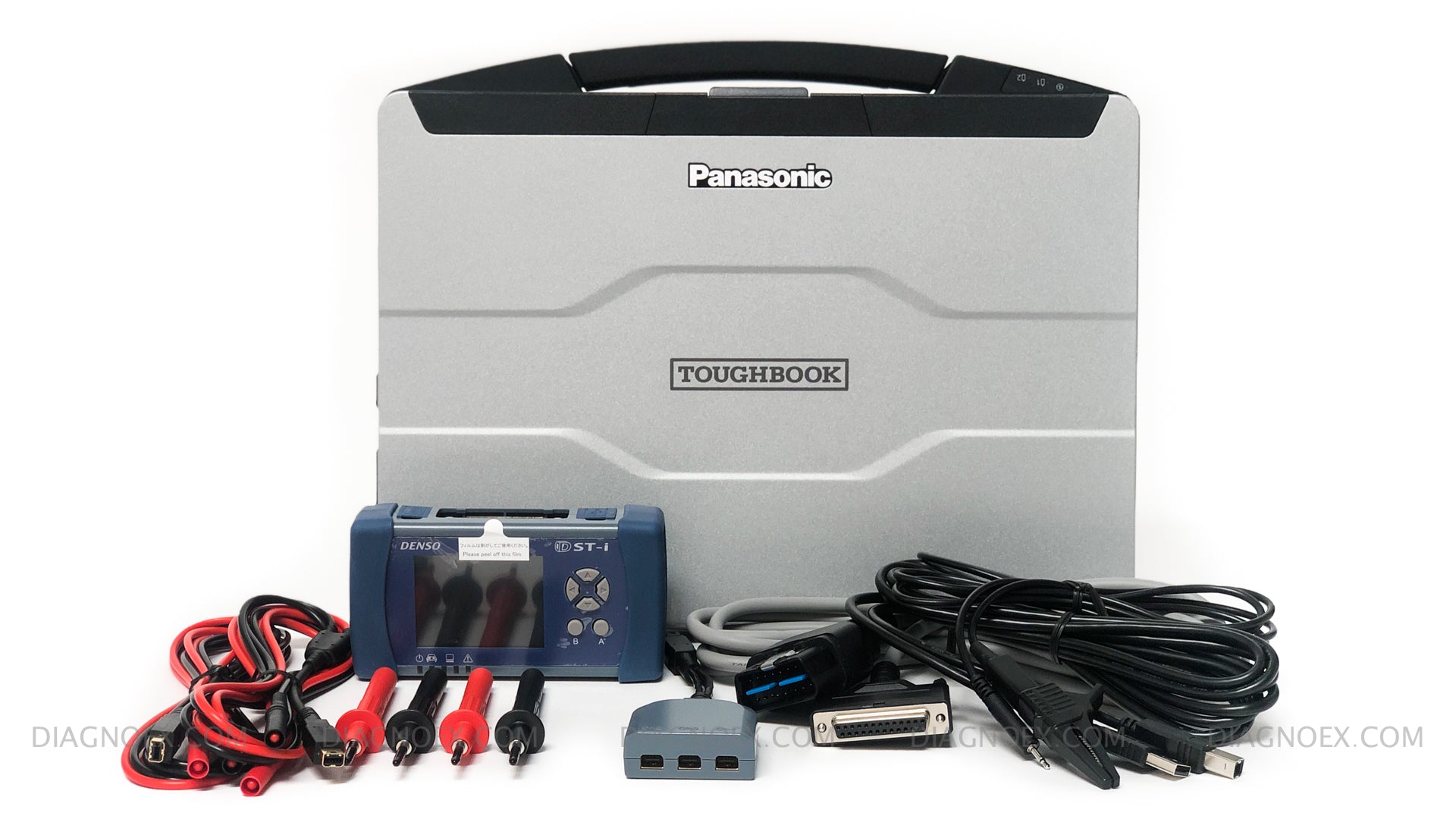

The Subaru workship package comes with new Panasonic Toughbook 55 computer, Denso DST-i with 4-channel Oscilloscope and Subaru SSM IV License.

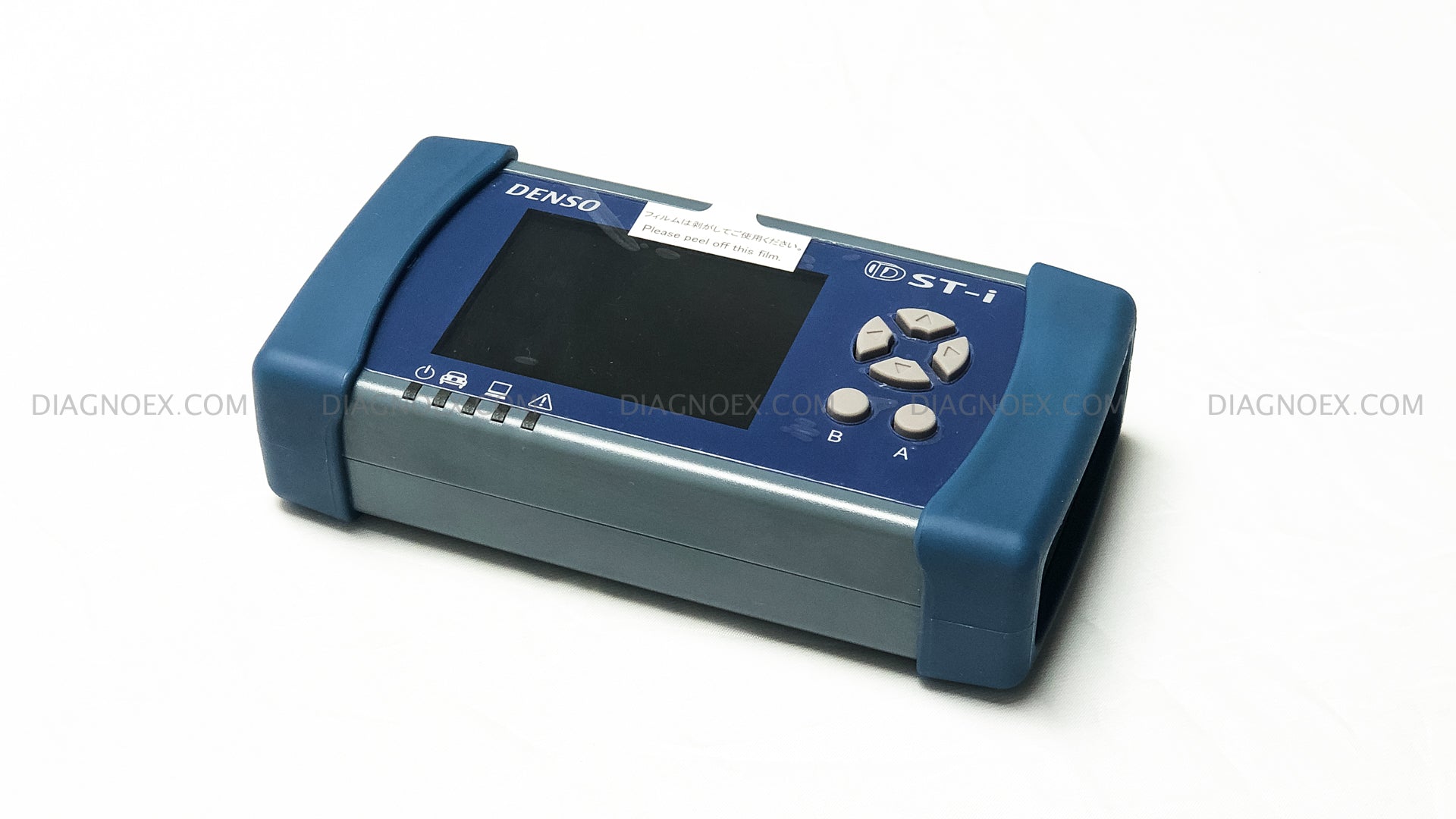

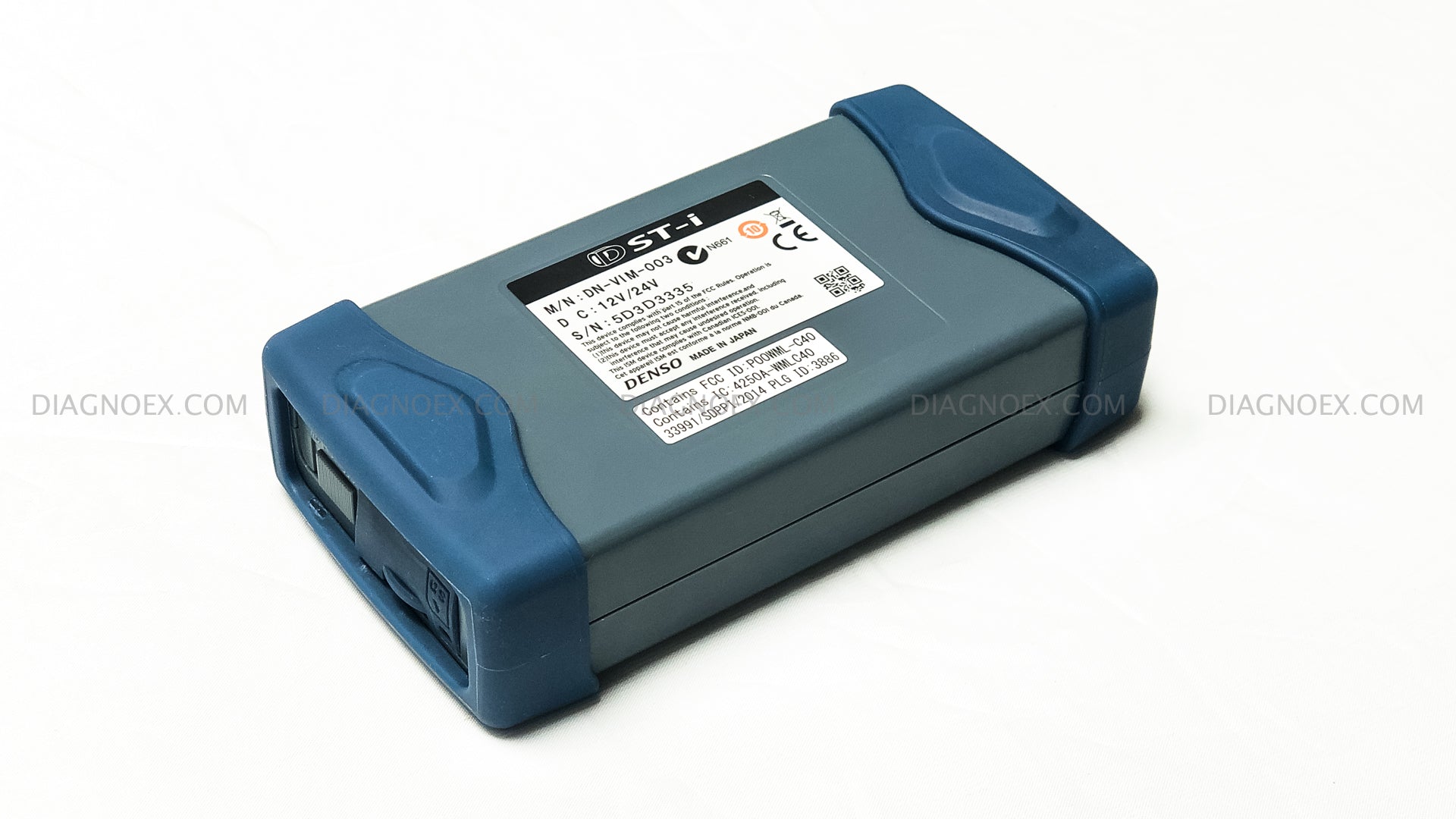

Denso DST-i is the diagnostic interface for Subaru SSM IV diagnostic programming software. This is the same diagnostic tool use in the Subaru dealership technicians.

Manufacturer: DENSO
Made in Japan

    • Subaru DENSO DSTi interface 4-channel Oscilloscope Overview

      The Subaru Select Monitor IV provides 100% dealer level systems coverage and functionality; model years 2004 thru 2022. The SSM IV kit includes a computer laptop, proprietary, 16-pin diagnostic cable, Denso DST-i interface, SD Card, and properly licensed Subaru SSM IV diagnostic software application.
      New Panasonic Toughbook FZ-55 Intel i5 8365U 1.6GHz / 8GB RAM / 512 SSD / Windows 10 Pro
      Upon delivery, the computer laptop (with software preloaded) will be properly activated and registered for your immediate use. Twelve months of software updates are included. The Subaru Select Monitor IV will function without the purchase of a new subscription.

      The Subaru Select Monitor IV has identical systems coverage and functionality as used at Subaru’s dealer network, including smart key codes, key registration, keyless entry, blind-spot detection, combination meter, telematics, and adaptive cruise control. The SSM4 is the Subaru, factory diagnostic tool, providing the latest factory diagnostics code and re-programming files for Subaru vehicles. Most commonly, it is used by professional automotive technicians. The kit currently covers model year coverage thru 2021 and free software updates thru the 2022 model year. The software vehicle coverage and functionality is the same as the software used at Subaru franchised dealerships.
      The SSM4 kit includes a laptop, 16-pin diagnostic cable, DST-i (DENSO Scan Tool Interface), SD Card, and licensed Subaru SSM4 diagnostic software application.
      For all instances where an interface is needed to diagnose 2004 and newer vehicles, the DST-i should be used.
      The DST-i can be used in combination with SSM3 software for all 2004 to 2015 vehicles. (From the SSM3 main menu, use the F10 button to select the proper interface.)

      The DST-i must be used in combination with SSM4 software for all 2016 and newer vehicles.

      *SSM4 is only compatible with Windows 10, and if used with any other OS the diagnostics interface may give errors.

      DST-i offers high-tech features such as Automatic Vehicle Detection and Data Recording.

      Subaru Select Monitor 4 – Features

      All System Diagnosis
      Data Recording
      Clear Error Codes
      Active Tests
      Manage Projects
      Injector Compensation
      Vehicle ECU Memory Reset
      Injection Quantity Correction
      MAF Correction
      Seat Weight Calibrations
      Steering Angle Relearns
      ADAS EyeSight Calibrations
      Fuel Pump Learning Value Clearing
      Access to Smart Key Registration, Keyless Entry

      This interface can order with Subaru SSM4 Subscription installed on Panasonic Toughbook FZ-55 computer

      ** These images are for illustration purposes only


    • Subaru DENSO DSTi Interface Specification

      Manufacturer: DENSO

      Made in Japan

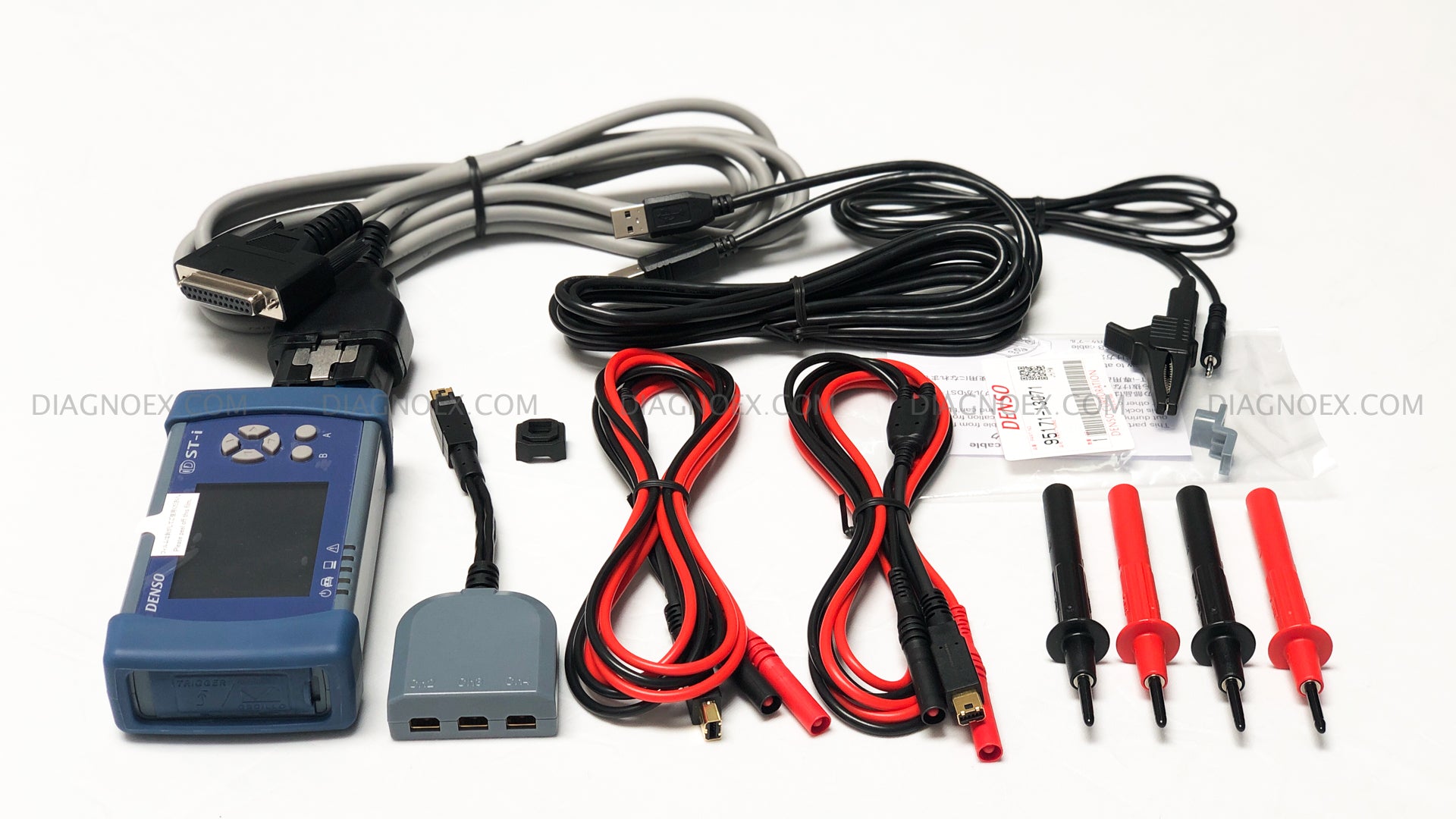

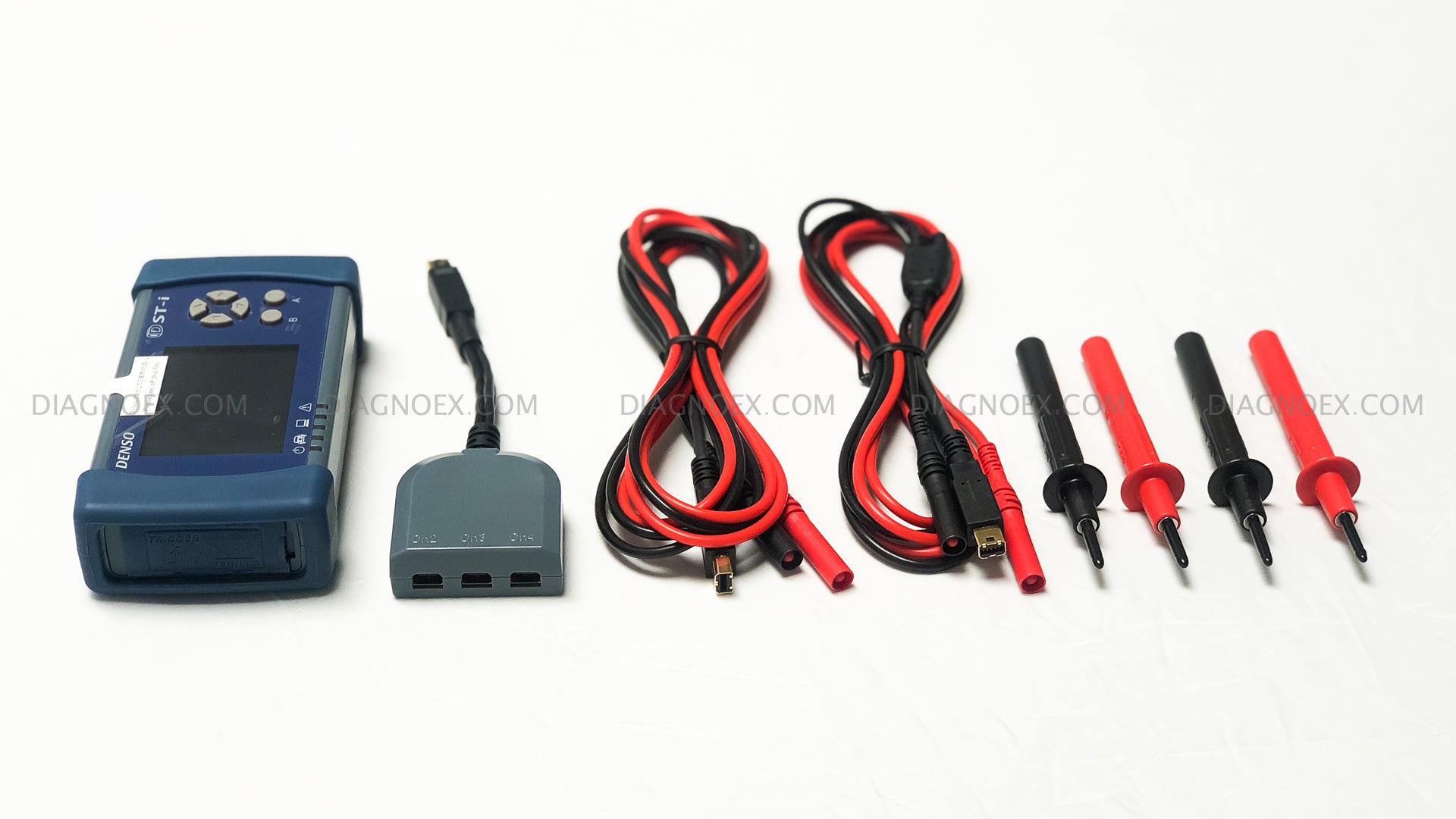

    • What's in the box

      Main DENSO DST-i Unit
      Datalink Cable
      Oscilloscope Probe
      4-Channel Adapter Kit w/probes
      Ground Cable
      USB Cable
      USB Spacer
      SD Memory Card
      DENSO Instruction Manual

      USB Cable
