Revolutionizing Electric Vehicle Charging: A Deep Dive into Next-Gen Diagnostics

March 17, 2025

Revolutionizing Electric Vehicle Charging: A Deep Dive into Next-Gen Diagnostics

As electric vehicles (EVs) continue to redefine mobility, the efficiency and speed of charging technology remain critical concerns. Whether it’s overnight slow charging, ultra-fast charging at public stations, or intelligent power management through low-voltage DC-DC (LDC) conversion, cutting-edge diagnostics ensure optimal performance. In this deep dive, we explore the latest advancements in EV charging technology, how sensor-driven diagnostics optimize the process, and why these innovations are shaping the future of sustainable transportation.

Having the right diagnostic tools is essential when working with modern EVs. Diagnoex.com provides dealer-level diagnostic tools, ensuring precise fault detection and repair. If you're servicing Hyundai, Kia, or Genesis vehicles, dealer-grade solutions like Hyundai GDS SMART, KIA KDS 2.0, and Genesis SMART are non-negotiable.


Slow Charging: The Foundation of EV Infrastructure

Slow charging, often utilized at home or in workplace stations, is a reliable method to replenish battery power. This process involves converting AC power from the grid into DC power for the high-voltage battery through a multi-stage voltage conversion system.

How It Works

  1. Grid Connection & Initial Boosting – The EV receives AC 220V from the charger and applies power factor correction (PFC) to stabilize fluctuations.

  2. First-Stage Voltage Boosting – Synchronization of voltage and current allows an optimized energy flow.

  3. Second-Stage Conversion – A DC-DC converter steps up voltage to match the battery’s required levels.

  4. Battery Charging – The high-voltage battery receives power, with output levels precisely managed to avoid energy waste.

Advanced Sensor Diagnostics Include:
  • OBC AC voltage tracking

  • Internal DC link monitoring

  • High-voltage battery voltage regulation

Slow charging remains a critical component of EV adoption, particularly for home users. However, diagnosing potential issues in the charging process requires specialized equipment. Diagnoex.com provides dealer-level diagnostic tools that ensure optimal performance and troubleshooting capabilities for EV professionals working with Nissan Consult 4, Ford FDRS Chrysler wiTECH2.


Fast Charging: The Future of Ultra-Rapid Energy Transfer

Fast charging significantly reduces downtime by supplying high-voltage DC power directly to the battery. With next-gen charging stations offering 400V and even 800V capabilities, EVs can now recharge in minutes instead of hours.

How It Works

  1. Direct DC Injection (400V Mode) – The charger supplies 400V DC, which is boosted via motor coils and inverter circuits to match the high-voltage battery requirements.

  2. Ultra-Fast Charging (800V Mode) – No boosting required—800V is supplied directly for near-instant battery replenishment.

  3. Intelligent Charging Management – Sensors ensure safe voltage application and prevent overheating.

  4. Optimized Battery Integration – Output voltage remains stable and adaptable to various battery chemistries.

Key Sensor Diagnostics:
  • EVSE output voltage monitoring

  • Inverter neutral point capacitor voltage analysis

  • High-voltage battery internal stability checks

With ultra-fast charging hubs like Tesla Superchargers and Hyundai’s E-pit network rolling out worldwide, fast charging is becoming the new standard in urban EV infrastructure. Ensuring the efficiency of such high-power systems requires dealer-grade diagnostic tools. Diagnoex.com offers solutions like Mercedes Xentry KIT4, VW Audi ODIS enabling service professionals to detect charging inefficiencies and faults with precision.


LDC Power Conversion: The Silent Hero of EV Power Management

Beyond battery charging, EVs require efficient power conversion systems to manage auxiliary electronics, infotainment systems, and onboard safety features. The Low Voltage DC-DC (LDC) converter steps down high-voltage battery power to a 12V system for these essential functions.

How It Works

  1. Voltage Reception from High-Voltage Battery – The LDC receives power from the main battery pack.

  2. Stepped-Down Voltage Conversion – DC-DC converters regulate voltage to ensure compatibility with the vehicle’s low-voltage systems.

  3. 12V Battery Charging – Critical vehicle functions, such as lights, sensors, and onboard computing, rely on this power supply.

  4. Efficient Power Distribution – PE junction boxes distribute electricity with minimal energy loss.

Advanced Sensor Diagnostics Include:
  • High-voltage battery tracking

  • LDC input/output voltage regulation

  • Auxiliary battery sensor monitoring

With the increasing complexity of EV systems, LDC optimization is a crucial aspect of vehicle performance and longevity. To diagnose and maintain these power systems effectively, professionals rely on specialized tools from Diagnoex.com, ensuring that dealer-level diagnostics tools provide accurate insights into the power conversion process.


The Road Ahead: Smarter, Faster, and More Efficient EV Charging

As the demand for EVs accelerates, charging technology must evolve to meet consumer expectations. From AI-driven diagnostics to ultra-fast charging solutions, the future of EV power management is focused on minimizing downtime, optimizing energy use, and ensuring long-term battery health. The innovations happening in slow, fast, and LDC charging diagnostics today are laying the groundwork for a world where charging an EV is as seamless as refueling a traditional car.

With automakers and tech giants investing heavily in smarter charging infrastructure, the next decade will see EVs becoming not only more accessible but also more intelligent in managing power efficiently. The future of mobility is electric—and it’s charging up faster than ever before.

For automotive professionals, ensuring EV performance means investing in high-quality diagnostic tools. Diagnoex.com provides dealer-grade solutions, equipping mechanics and service centers with Hyundai GDS SMART, KIA KDS 2.0, and Genesis SMART to maintain and troubleshoot EVs at a factory level.

  • Share:

Leave a comment

Comments will be approved before showing up.


Also in RESOURCES

Hyundai GDS-Smart Installation
Hyundai GDS-Smart Installation

March 08, 2023

Tentative release date scheduled for March 13th, 2023. Hyundai Motor America has announced the upcoming release of Hyundai GDS-Smart, and the company is urging dealers to schedule the installation accordingly to ensure continuity of service.

Read More

Hyundai GDS SMART
Hyundai GDS SMART

November 13, 2022

Hyundai GDS SMART by Hyundai Motor Group, the world is changing faster than ever, and technology is corresponding with rapid progress.

Read More

Subaru-Denso-DST-interface

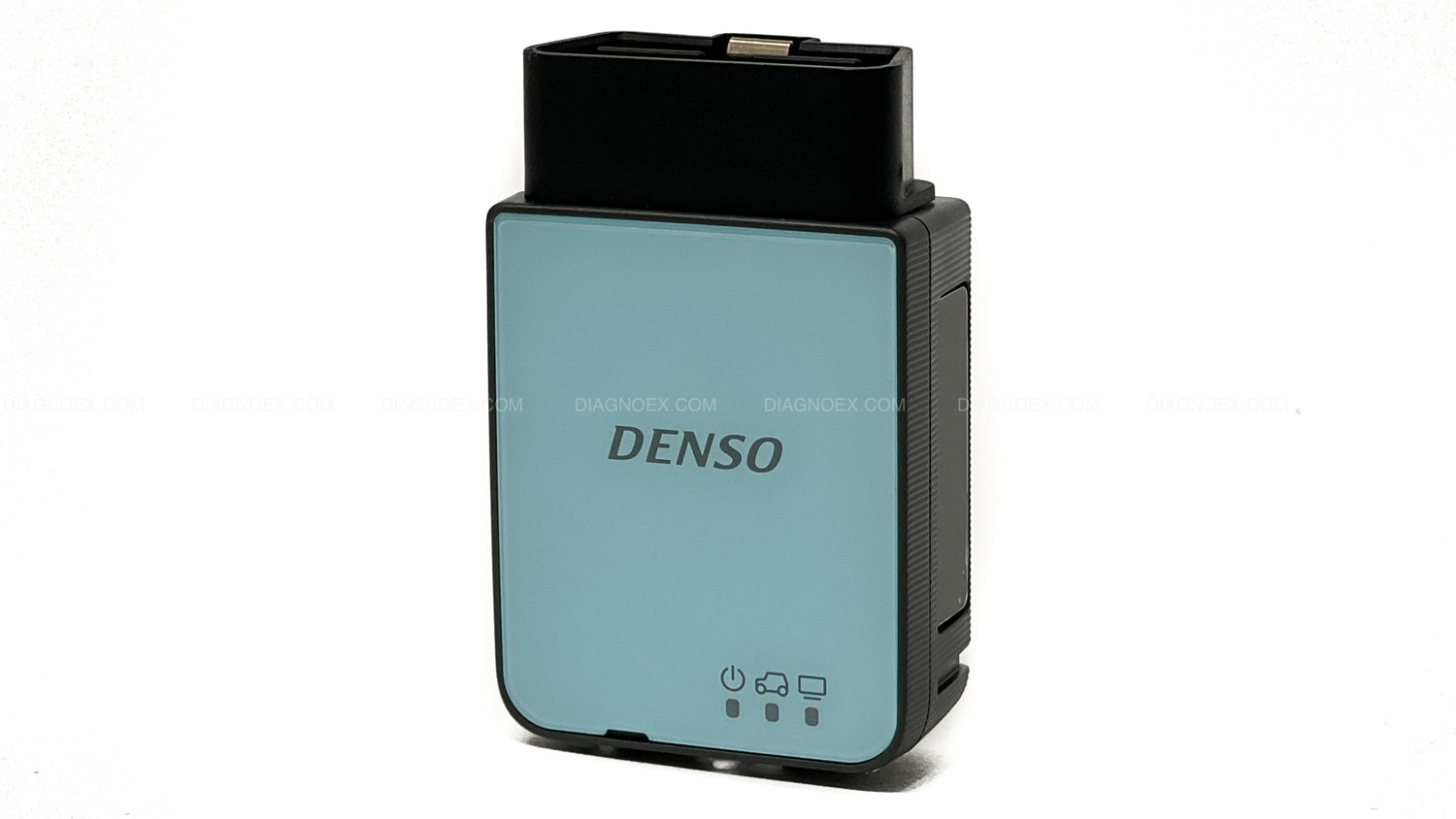

Subaru Diagnostic System (SDS) Interface Device – Denso DST-010
